January 15, 2008

Greyscale Racing MRCG chassis

Greyscale Racing MRCG chassis

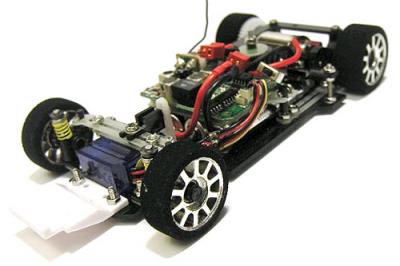

Back in July we showed you a CAD image of the Greyscale Racing MRCG project which was intended from the very beginning to create the most effective chassis to ever compete in 1/28 RC car racing as well as to be a user-friendly, versatile machine that maximizes the driver’s potential on any given track. Greyscale have now released the first images of the prototype which is based on Kyosho’s proven Mini-Z MR02 platform, and it is a completely new chassis from the ground up that combines smart engineering with specially-chosen materials to gain an edge in the budding market of 1/28 open-class competition.

Click here to see more pictures and feature list…

Features
– Built on the race-proven Mini-Z MR02 platform; uses many MR02 parts

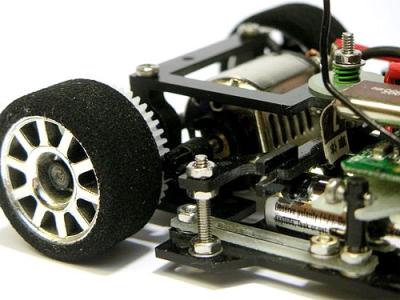

– Innovative, infinitely-adjustable flex plate suspension
– Tools-free quick-release battery system designed for endurance racing
– Ultra-low center of gravity and polar moment of inertia
– Adjustable weight distribution
– Durable 1.5mm/0.8mm FRP chassis
– Lightweight FRP/Delrin rear pod
– Unique 2-piece motor mount works with any 130-can motor

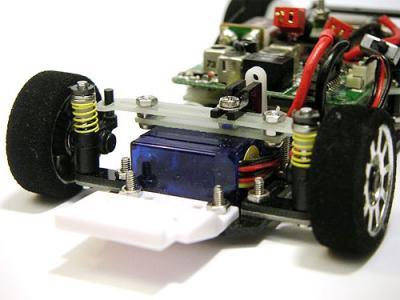

– Unique tierod steering system with optimized Ackerman
– Fully adjustable suspension: spring rate, anti-roll, preload, droop, ride height, camber, toe, roll center, damping
– 94 or 98mm wheelbase
– Compatible with Mini-Z MR02 bodies and polycarbonate bodies
– Hand-finished and pre-assembled chassis

Greyscale Racing MRCG chassis

Greyscale Racing MRCG chassis

Greyscale Racing MRCG chassis

Source: Mini-Z Racer [mini-zracer.com]
