June 20, 2008

Edam Razor 1/8 scale Pro Kit

Edam Razor 1/8 scale Pro Kit

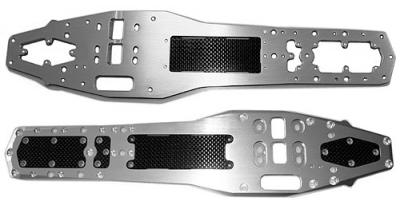

The Razor 1/8th scale from Edam has been around for a while now, but they have released a Pro Kit version which has received a number of updates recently to make it a more worthy consideration for competition use. Updates to the kit include and all new 5mm thick chassis plate, with both space for a 5 cell 2/3A racing pack as well as the ability to use carbon stiffeners in the plate itself. Other changes include an updated clutch system as well as lightweight 2 speed, and the car is supplied with CVD’s up front and extremely lightweight rear axles as standard.

Click here for the feature list and more photos…

Edam Razor 1/8 scale Pro Kit

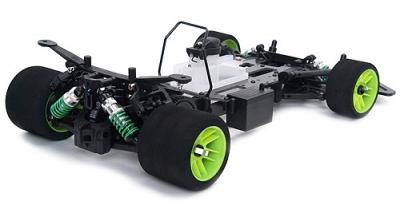

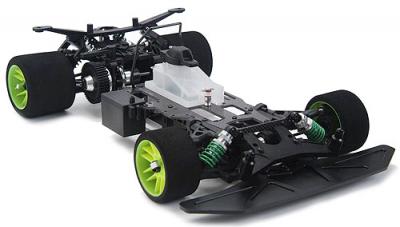

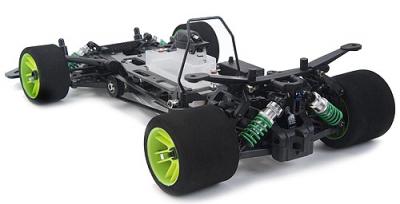

Features of this car include (car pictures show standard kit):
– 7075 T6 machined and lightened aluminium chassis
– Carbon Fibre radio tray
– Carbon Fibre Front and Rear Shock Towers
– 125cc Flip-top fuel tank splash guard
– Front and rear adjustable sway bars

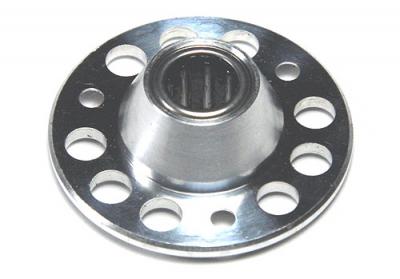

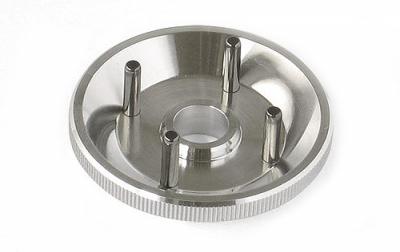

– Updated Centax-style adjustable clutch
– Threaded aluminium shocks

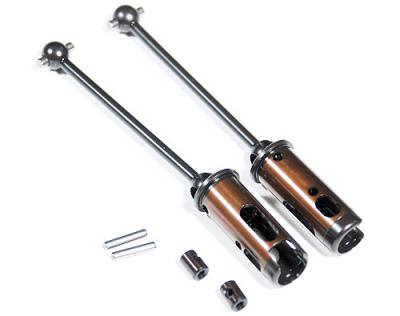

– Front CVD’s

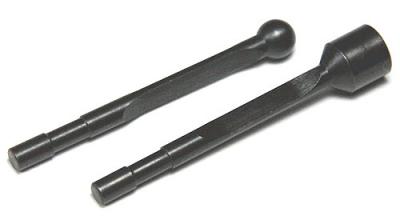

– Hardened spring steel dog bones

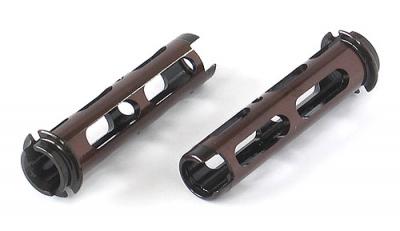

– Hardened lightweight steel quick-change axles, front and rear
– One-way bearing front axle
– Low friction belts

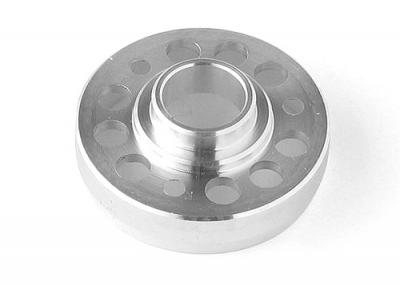

– Lightweight 2-shoe 2-speed unit
– Ball bearing side belt tensioner
– Full sealed ball bearing set

Technical Data:
Length without body: 440mm
Tread Front/Rear: 216.7mm/202.5mm
Width: 262mm
Wheelbase: min 288mm/max 300mm

Edam Razor 1/8 scale Pro Kit

Edam Razor 1/8 scale Pro Kit

Edam Razor 1/8 scale Pro Kit

Edam Razor 1/8 scale Pro Kit

Edam Razor 1/8 scale Pro Kit

Edam Razor 1/8 scale Pro Kit

Edam Razor 1/8 scale Pro Kit

Edam Razor 1/8 scale Pro Kit

Edam Razor 1/8 scale Pro Kit

Edam Razor 1/8 scale Pro Kit

Source: Edam [edam.com.tw]
