July 15, 2008

Team Wave RB-30 BL ESC & BL Motors

Team Wave RB-30 BL ESC & BL Motors

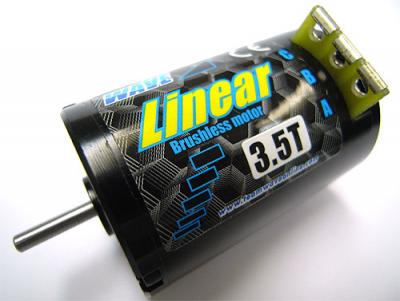

Following the release earlier this year of the RB-50 competition ESC, Team Wave have released their latest brushless sensored Speed Controller, the RB-30. Designed to handle up to 7.5T brushless motors, as well as up to 7T brushed motors, the ESC has a rated current of 200A. Featuring the usual range of adjustable functions, the RB-30 sports a top mounted blue anodized heatsink for cooling and can fit in a large range of vehicles thanks to its small footprint. Also new from Team Wave, is a range of competition brushless motors called Linear, that are available in a large range of turns from 3.5T all the way up to 17.5T

Click more for RB-30 specs and to see the Linear BL motor…

RB-30 Brushless ESC Specifications
Brushless Motor: 7.5T
Brush Motor: 7T
Rated current: 200A Continuous/Phase
BEC: 6V, 3A Continuous
Input voltage: 4-8 Cells NiMh, 3Cells LiPo
Protection: Temp cut (adjustable), LiPo cut (adjustable)
Mode: Forward with brake (brush/brushless), Forward/Brake/Reverse (brushless)
Adjustment: Neutral Brake, Brake force, Turbo Drive, Time shift (motor timing), Throttle profile, Brake profile
Cooling fan: No cooling fan
Capacitor: Small size super low resistance capacitor included (10mm diameter x 21mm length)
Body size: 34mm x 31mm x 18mm (WxLxH)
Body size with heatsink: 34mm x 31mm x 25.5mm (WxLxH)
Weight: 30g without wire

Team Wave RB-30 BL ESC & BL Motors

Source: Team Wave [teamwaveonline.com]
