February 20, 2009

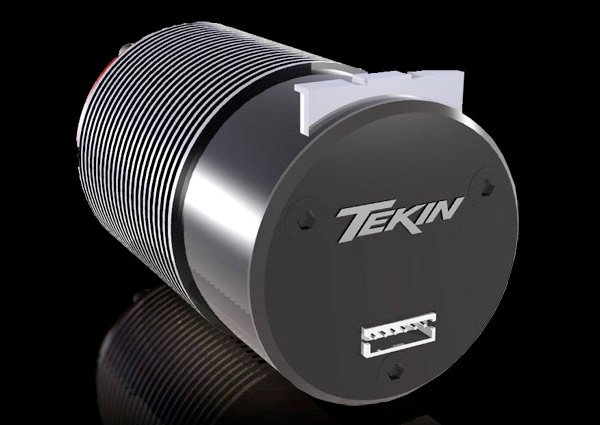

Tekin Redline T8 motor series

Tekin Redline T8 motor series

Tekin have released their Redline T8 motor series, designed for large scale, high performance competition. Featuring sensors for flawless, reliable on track operation, the T8 provides pro level control and power and is also capable of sensorless operation. The motor features a CNC machined 6061 T6 Billet aluminium ribbed heat sink and a neodymium sintered magnet and is available in a number of different versions, which can be seen below.

– CNC Machined 6061 T6 Billet aluminum Ribbed Heatsink Can
– Sensored and Sensorless operation.
– High Current Solder Tabs
– Rebuildable Design
– Neodymium Sintered Magnet
– Precision Engineered for Maximum Energy Conversion
– Dual-Plug Sensor Wire Harness

Tekin Redline T8 motor series

Weight: 4030: 11.5oz (341g) 4038: 14.25oz (404g)
Shaft Dimensions: 19 x 5mm w/flat
Motor Diameter: 1.57” (40mm) / 1.65” (42mm) including fin
Motor Length: 4030: 2.80” (71mm) 4038: 3.0” (76mm)

T8 (buggy) motors
TT2350    4030    2650kv
TT2351    4030    2050kn
TT2352    4030    1900kv
TT2353    4030    1700kv
TT2354    4030    1400kv

T8 (truggy) motors

TT2360    4038    2250kv
TT2361    4038    2000kn
TT2362    4038    1700kv
TT2363    4038    1550kv
TT2364    4038    1350kv

Source: Tekin [teamtekin.com]
