June 16, 2009

ProTek R/C iCharger 208B DC charger

ProTek R/C iCharger 208B DC charger

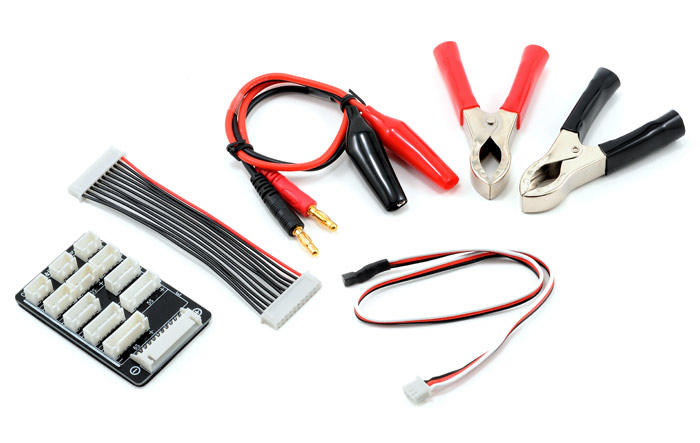

New from ProTek R/C is this iCharger 208B Lilo/LiPo/Life/NiMH/NiCD DC battery charger. This charger allows you to charge 2S to 8S lithium batteries, or multiple batteries connected together in series and comes with an XH style balance adapter board that fits Align, E-Flite and ProTek R/C battery packs, and adapter boards for other batteries are also available. It is also designed to allow you to balance multiple batteries at once as you can charge and balance up to two 4S batteries, two 3S batteries or three 2S batteries at once using a serial charge lead.

Specifications:
– Input Voltage Range: 4.5 – 32.0VDC
– Charge Current Range: 0.05 – 20.0A
– Discharge Current Range: 0.05 – 20.0A
– Maximum Charge Power Capacity: 350W @ Input voltage > 18V
– Maximum Discharge Power Capacity: 30W Maximum internal
– Discharge Power Capacity: 600W @ 30V/20A
– Current Drain For Balancing: <350mA
– Balance Accuracy: <10mV
– Lithium (LiPo/LiIo/LiFe) Battery Cell Count: 1 – 9 Series (In non-balance mode, expand LiFe to 10s)
– NiCd/NiMH Battery Cell Count: 1 – 25 series
– Pb Battery Cell Count: 1 – 18 series (2 –36V)
– Log File Storage: 16Mbit (36 hours)
– Battery Setup Memories: 10
– Intelligent Temperature Control: Yes
– PC Connect: USB port
– Weight: 420g
– Dimensions (L X W X D): 143x97x26mm 5.63″x3.82″x1.02″

ProTek R/C iCharger 208B DC charger

Source: A-Main Hobbies [amainhobbies.com]
