June 27, 2010

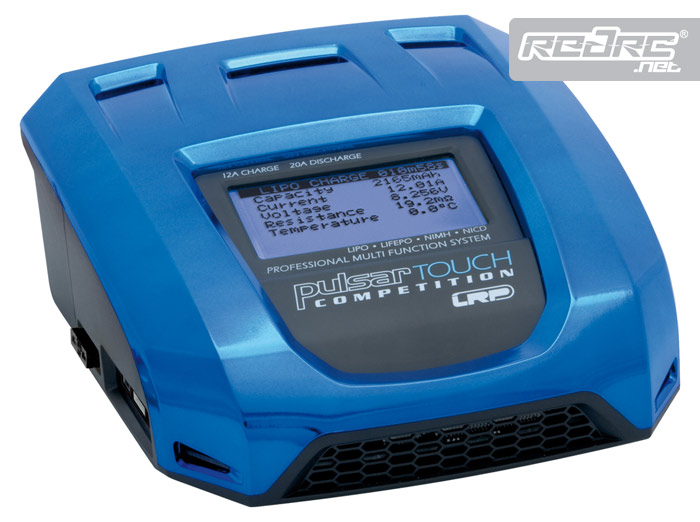

LRP Pulsar Touch competition charger

LRP Pulsar Touch competition charger

LRP have released their Pulsar Touch competition charger at the Worlds in Burgdorf, Germany. This completely new developed charger shines with its revolutionary features, such as a special touch screen with graphic user interface and high-quality components. This puts the 4th generation Pulsar charger in a class of its own. Another special highlight is the integrated high-performance LiPo/LiFe balancer, that detects differences in the cells and automatically starts balancing, resulting in longer lifetime and even better performance of the cell.

Charge LiPo – LiFePo – NiMH – NiCd
– Adjustable fast charge from 0.1 to 12.0A:
1-4 cells LiPo/LiFePo with automatic (LiPo/LiFePo) cut-off
1-8 cells (NiMH/NiCd) with adjustable Delta-Peak detection, linear or optional 5-step charge mode. (charging with variable current steps)
– Autostart-Timer for maximum comfort
– Storage Mode: The battery is charged/discharged automatically for longest cell lifetime

Cycle LiPo – LiFePo – NiMH – NiCd
– Automatic Cycling Mode (Discharge – Charge – Discharge) for perfect conditioning of your batteries.

Discharge LiPo – LiFePo – NiMH – NiCd
– Adjustable high-power discharge current (up to 20.0A) and cut-off voltage to perfectly match your batteries.

– Touch screen Graphic Display, blue backlit
– Integrated LiPo/LiFe Balancer: Integrated LiPo/LiFe Balancer: The Balancer is specially developed for the use with LiPo and LiFe batteries. It automatically detects cell condition for all 2- up to 4 cell batteries. If the difference between the cells is more than 5mV, the adaptation starts automatically.
– Brushless motor sensor port: for sensor check and rpm measurement.
– Receiver simulator port: for function check of speed controls and servos.
– Fully Adjustable: Intuitive program structure with graphical user interface, allows precise adjustment of all parameters.
– User Profile Memory: 5 factory pre-set profiles which can be customised, renamed and saved in memory.
– USB connection (wire included): for data download to PC and firmware update.
– Microprocessor controlled: Fully adjustable for perfect operation, maximum performance and highest safety
– Multi Protection System: 100% protection against output reverse polarity, short circuit, input voltage error and over charge.
– Voltage calibration for maximum accuracy.
– DC Input 11-15V
