January 7, 2011

Nitrosisters Xray X10 235mm conversion kit

Nitrosisters Xray X10 235mm conversion kit

Nitrosisters have released this 235mm conversion kit for the Xray X10 200mm chassis. Supplied with lightweight hub extensions and made of 7075-T6 aluminium, they key into the hubs for a precise, wobble free fit every time and also have a locating ring for the wheel to centre on. Each hub extension is 15mm wide, bringing your stock Xray X10 to 230mm which allows the driver to tune the rear track width with shims to get just the right width for the body of choice. The wide front end plate included two sets of front end holes, the inner set is for 200mm bodies while the outer set is for bodies with wheelbase from 220mm till 225mm. The included adjustable turnbuckles are made of titanium.

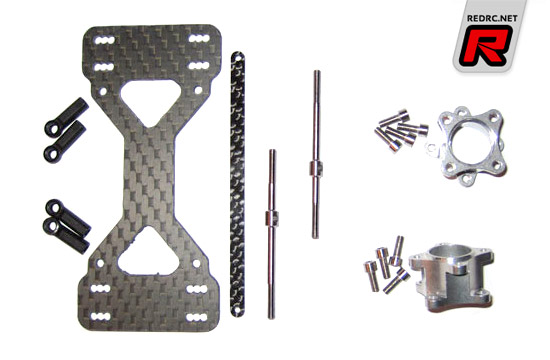

The conversion kit includes:
– 235mm hub extension for Xray X10 (2)
– Screw M3x8 (8)
– Arm mount plate 2mm wide graphite (1)
– Front brace 2mm wide graphite (1)
– Titanium adjustable turnbuckle M3 L/R (2)
– Composite steering ball-joint open 4,2mm (4)

Source: Nitrosisters [nitrosisters.com]
