February 3, 2011

Xray RX8 1/8th scale on road chassis

Xray RX8 1/8th scale on road chassis

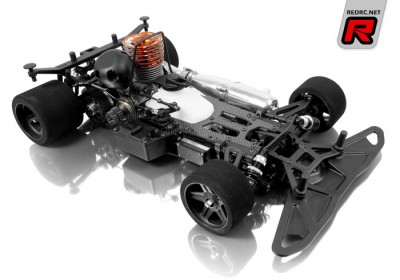

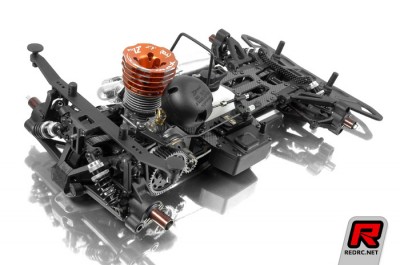

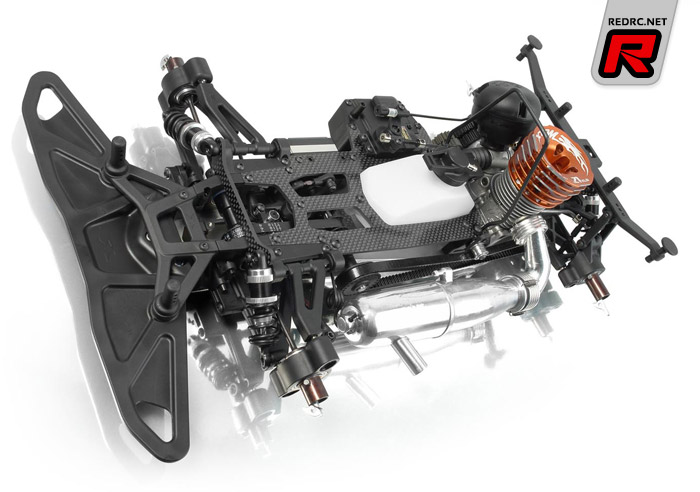

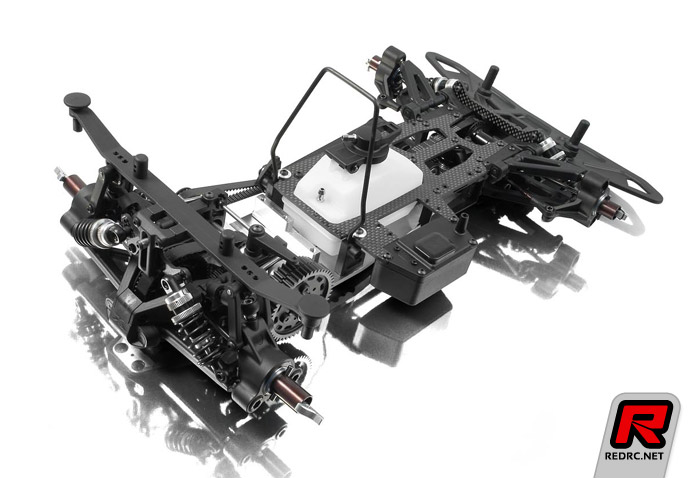

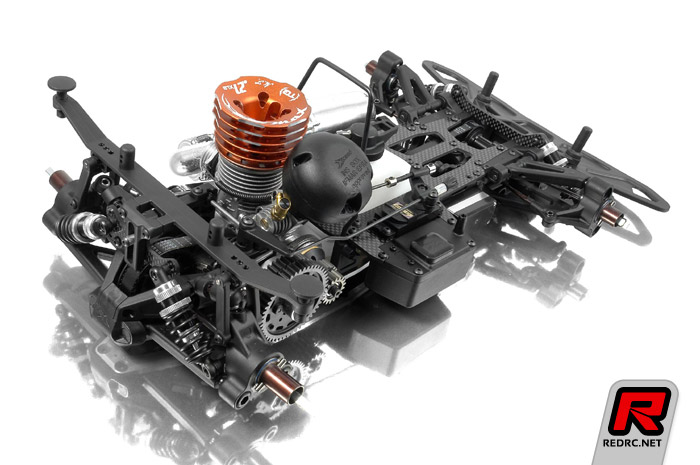

Xray have released information on their all new RX8 1/8th scale platform. We have talked with the guys on the Xray stand here in Nuremberg, played with the car and taken our own photos but as we write that story, here are the release photos and features list of the new car.

Xray RX8 1/8th scale on road chassis

– Developed, designed, and styled by legendary Ing. Juraj Hudy, manufactured exclusively by XRAY in Europe in
the world’s most sophisticated RC manufacturing facility
– Pure racing design, premium luxury quality, highest performance
– Premium, exclusive, and high-tech materials used throughout
– Unique, super-strong composite materials with XRAY’s self-developed secret compound mixtures for
suspension and drivetrain parts
– World’s lowest CG 1/8 on-road car platform
– Easy-access drivetrain parts for super-quick rebuilds and set-up changes


– CNC-machined 5mm Swiss 7075 T6 chassis, super-narrow design
– Front and rear chassis holes for additional graphite stiffeners and weights
– Super-narrow radio plate CNC-machined from high-grade 2.5mm aero-space graphite
– Centralized 125cc fuel tank offers 3 mounting positions, internal stone-type filter, and volume inserts to fine-
tune fuel capacity
– Fuel tank pressure cap with 1-pc profiled seal for perfect fit and sealing
– Composite front and rear bulkheads for optimum suspension and chassis flex
– Belt tension adjustment in front and rear bulkheads
– Unique compact lightweight radio case with rubber-covered quick-exchange system
– Centralized, low-mounted receiver battery pack below fuel tank for easy access
– Optional micro-size receiver battery pack allows fuel tank lowering by 3mm, creating an ultra-low 1/8 on-road
– Ultra-low radio plate to create the world’s lowest platform
– Easy radio plate flex adjustment via bushings

Xray RX8 1/8th scale on road chassis

Xray RX8 1/8th scale on road chassis

Xray RX8 1/8th scale on road chassis

Engine & Clutch
– Quick-set aluminum engine mount system with fixed engine position for super-easy engine installation and gear mesh adjustment
– Swiss 7075 T6 hardcoated flywheel
– Easily-adjustable 3-shoe XCA (XRAY Centrifugal-axial) clutch
– Clutch nut and preload adjustment collar manufactured from special HUDY Spring Steel™ for maximum lifespan and durability
– Ultra-lightweight precision support plate and spring cup manufactured from high-tensile 7075 T6 aluminum
– Clutchbell manufactured from high-grade special steel for high durability and superior lifespan
– Clutchbell / pinion gear construction allows super-precise assembly
– Swiss 7075 T6 machined pinion gears feature special profile teeth that are individually machined on a high-precision gear production machine; special hardcoating ensures maximum life
– Carbide axial thrust-bearing and high-tensile spring
– Robust spring-mounted exhaust mounting system

– Aluminum brake 7075 T6 hub with hardened, pressed brake disk drive pins
– CNC-machined 1-piece brake disk with ultra-deep ventilating groove to dissipate head from both sides of the disk
– Brake disk is precision flat-ground for maximum braking efficiency and super-smooth braking action; strategically-placed ventilation holes ensure minimal brake pad wear
– Brake disk manufactured from special steel and additionally heat-treated for maximum lifespan
– Brake pad backing plates heat-treated for maximum lifespan
– High-grip brake pads are specially bonded to backing plates for high resistance to generated heat build up
– Special distance springs ensure proper gap between brake pads
– CNC-machined 7075 T6 aluminum brake cam is ball-bearing supported for super smoothness and precise brake control

– XRAY has developed the most efficient, smoothest drivetrain using optimal belt/pulley construction with lowest rotating mass
– Exclusive HUDY Spring Steel™ drivetrain parts for highest performance and unmatched lifespan
– High-performance HUDY Spring Steel™ front CVD drive shafts
– Rear dogbone style HUDY Spring Steel™ drive shafts
– Super-lightweight wheel axles CNC-machined from HUDY Spring Steel™
– Swiss 7075 T6 alu wheel locks
– Rear solid axle outdrives manufactured from HUDY Spring Steel™, specially hand-ground for maximum precision and smooth operation
– PUR®-reinforced high-efficiency, low-friction, fine-pitch drive belts
– Front middle shaft features large pulley for smooth belt operation and increased lifespan
– Oversized pulleys for maximum-efficiency belt wrapping
– Pulleys molded from super-low friction composite material for extra-long lifespan
– All pulleys have 1-pc design to eliminate need for alu adapters (reduced weight)
– Complete set of high-speed, blue-sealed ball-bearings, degreased, lightly oiled for maximum efficiency, individually controlled, selected, and inspected
– Adjustable graphite side-belt tensioner

2-Speed Transmission
– Precision-manufactured, super-smooth lightweight hollow middle layshaft made from tough HUDY Shaft Steel, specially heat treated for extra strength and long life
– High-quality 1-way bearing hand-ground for maximum running precision and strength
– 2-speed spur gear adapter CNC-machined from Swiss 7075 T6 for precision fitment of 1-way bearing, allowing super-precise and wobble-free spur gear installation
– World’s most precise spur gears molded from special composite mixture ensures wobble-free running and eliminates run-out
– Wide 2nd gear for increased durability and lifespan
– Stiff 2-speed springs
– Precise 2-speed adapter manufactured from hardened steel
– The 2-speed gear box shoes molded from special composite mixture

– Super lightweight front one-way differential with 1-way bearing
– Front axle body machined from high-quality Swiss 7075 T6
– Rear composite lightweight 1-piece solid axle features composite pulley with holes for self-cleaning
– Diff outdrives manufactured from HUDY Spring Steel™ and specially ground for maximum precision
– Easily-adjustable front and rear axle height via eccentric bulkhead bushings

– Advanced suspension geometry optimized and finely tuned for high-competition racing
– Lightweight, durable, and reinforced suspension parts molded from XRAY’s self-developed composite mixture for suspension parts. Each suspension part is molded from a high-tech composite that is specially formulated for the particular part
– High-tensile steel suspension pivot pins polished for smooth suspension action.
– Front and rear suspension arms allow super-easy wheelbase and weight balance adjustment
– Fully-adjustable suspension featuring I.S.S. (Integrated Suspension Settings™) – front upper and rear lower suspension is mounted via eccentric bushings which allow full roll center adjustment (up/down & in/out)
– Front steering block and rear uprights feature eccentric bushings for roll center and caster adjustment.
– Eccentric bushings in rear upright allow independent wheelbase adjustment.
– Small, robust rear uprights feature two easily-adjustable upper roll center positions for traction adjustment.
– Uprights feature two body mounting adjustment positions to accommodate different body types
– Easily-adjustable 0.5–2.5mm wheel offset using included shims on the wheel axles for front steering adjustment and rear traction characteristic adjustment
– Front and rear track-width adjustment
– Front upper arm design allows quick & easy caster adjustment
– Hand-ground blade-style front-anti roll bars manufactured from Hudy Spring Steel™ are easily adjustable to alter stiffness
– Front anti-roll bars are fully independent from front downstop adjustment
– Rear wobble-free anti-roll bar supported by ball-bearings
– Optional wire anti-roll bars or blade-style anti-roll bar for fine tuning
– Premium Hudy Spring Steel™ adjustable turnbuckles
– Lightweight, super-strong composite pivotball nuts
– Precision pivotballs are specially hardened for exceptional robustness and enhanced lifespan
– Rear suspension mounted independently from bulkheads;
– Rear upright features shorter and longer pivot balls in the kit for optimum set-up adjustment

– Centralized ball-bearing supported steering servo saver with adjustable spring tension
– 4 Ackermann positions
– Servo mounting system for mid-size servos
– Steering blocks with optimized Ackermann

– XRAY 4-step externally-adjustable shocks feature standard fixed or adjustable pistons
– Fine-threaded alu racing shock bodies for precise height adjustment
– Specially-hardened shock shafts for maximum strength
– XRAY self-developed and manufactured ultimate racing springs are hand-selected and tested for maximum precision, equal length, and equal damping characteristics
– Shocks are mounted to arms into optimized positions and all positions are positioned maximum outwards for maximum stability
– Front and rear CNC-machined premium graphite shock towers feature optimized shock positions for high-competition racing

Body & Wheels
– Front bumper with optimized downforce design and removable sections for downforce adjustment
– Front and rear body mounts allow 2mm front/rear body position adjustment
– Special composite mixture rear body mount with 3 positions for rear upright downforce adjustment
– Front upper and lower composite bumpers made from special composite material to withstand hard impacts

Assembly & Support
– Premium 3D full-color Instruction Manual and on-line comprehensive XRAY Set-up Book
– Exclusive Virtual Online Set-up Sheet database with thousands of set-up sheets for race tracks around the world
– Premium, unmatched XRAY online support

Adjustment Possibilities
– Fully-adjustable front and rear suspension geometry: caster, camber, toe, ride height, droop, wheelbase, track-width, roll centers
– Adjustable front & rear roll centers
– Adjustable belt tension via bulkhead inserts
– Adjustable HUDY Spring Steel™ turnbuckles (steering, servo, rear upper links)
– Adjustable Ackermann positions
– Optimized front & rear upper and lower shock mounting locations
– Externally-adjustable alu racing shocks (4-step)
– Adjustable front anti-roll bar
– Optional adjustable rear anti-roll bar

Source: Xray [teamxray.com]
