Xceed Compact Charger C6

Xceed Compact Charger C6

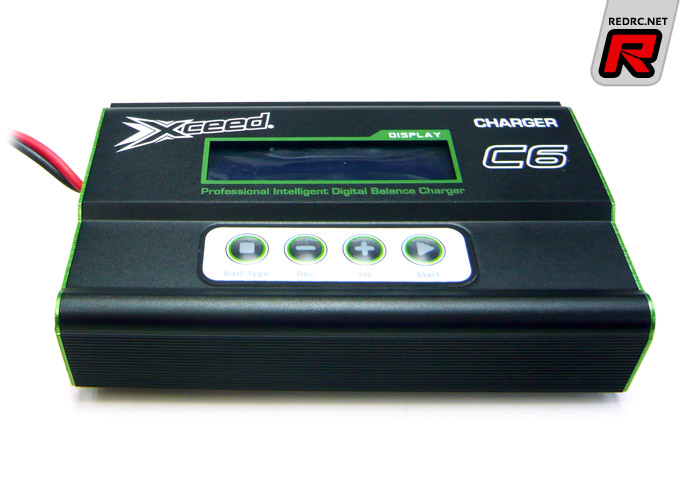

The new Compact Charger C6 from Xceed is an excellent compact charger for nitro-racers to charge RX/TX packs, starter box and glow booster. Also suitable for the regular electric car racer too, it charges all common battery-types up to a maximum of 5A / 50W. Featuring a hard aluminium compact case, it is finished of in stylish black, green & white colors.

Special Features
– Optimized operating software, very easy to set and program
– Large heat sink and maximum efforts for safety control
– Internal independent lithium battery balancer
– Balancing individual cell battery discharging
– Adaptable for various type of lithium battery
– Fast and storage mode of lithium battery
– Automatic charging current limit
– Capacity limiter
– Temperature threshold
– Processing time limit
– Input power monitoring
– Date store/load
– Cyclic charging/discharging

Xceed Compact Charger C6

Specifications
– Input voltage: DC 11V- 18V
– Charge current: 0.1 – 5A, 0.1A step
– Discharge current: 0.1 – 1A, 0.1A step
– Max charging power: 50W
– Max discharging power: 5W
– Nicd/NiMH cells: 1 – 15 cell
– LiIon/LiPO/LiFe Cell: 1 – 6 cell
– Lead-acid (Pb): 2 – 20V
– Temperature sensor & USB enabled
– Balance: 2 – 6 cells
– Case: alu
– Display: 16 x 2 character LCD
– Dimension: 136mm x 75mm x 20mm

Source: Xceed [xceedrc.com]
