June 17, 2011

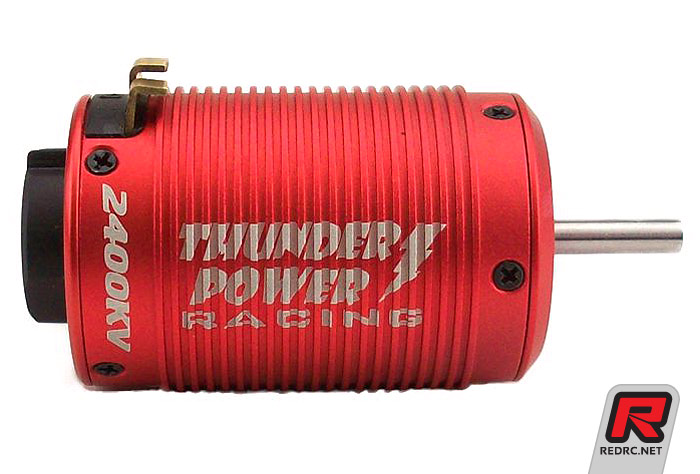

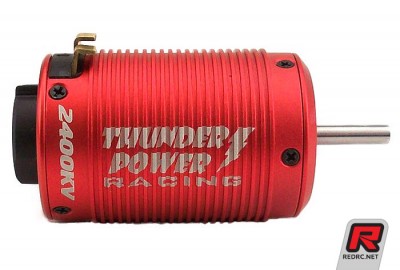

Thunder Power Z3R-8 brushless motor


Thunder Power introduces the Z3R-8 brushless motor for 1/8 scale electric vehicles. The motors with a 4-pole Neodymium rotor offer a red anodised aluminium heat sink can with build-in cooling fins, plated copper solder tabs, fast-switching high-temp sensors and adjustable timing from 0 to 25 degrees. The front plate sports dual screw hole mounting pattern to allow for easy mounting in any 1/8 scale application. With a diameter of 42.1mm and a length of 69.2mm the motors weight around 323g and come with 1400, 1900, 2100 and 2400kv rating.


Source: Thunder Power RC [thunderpowerrc.com]
