Elangears EL-01AD & X2 AC/DC chargers
Elangears has introduced 2 new chargers to their range, the EL-01AD AC/DC auto balance charger and the X2 dual auto balance charger. Externally they look awesome with their matt finish case with yellow/orange highlights as well as easy to read orange backlit 2 line LCD display and both units are controlled by a convenient joystick. Output power from the EL-01AD is 0.1 – 7A max 133W with DC and 0.1 – 7A max 60W on AC while it can also discharge up to 5A. It can accept LiPo & LiIon up to 6S and NiCd cells up to 14S. The X2 is the same specs but features dual units in one case.
ELAN EL-01AD
Operation Power : DC 11 ~ 18V
Output Port: AC 100 ~ 240V (50/60Hz)
Charging current: Single
0.1 ~ 7A (Max. 133W / DC power input)
0.1 ~ 7A (Max. 60W / AC power input)
Discharging current : CH1 0.1 ~ 5A (Max. 22W)
Battery available : Li-Po : 1~6S / Li-Fe : 1~6S / Li-Ion : 1~6S
Ni-MH : 1 ~ 14S / Ni-Cd : 1 ~ 14S / Pb(Lead) : 2 ~ 20V
Display : 2 Line 16 Characters Special Orange Backlit LCD
Size : 138mm x 151mm x 86mm
Features :
AC/DC power input
Charging and discharging for various batteries
Revisable battery preset
One-page program interface
High quality autobalance system for stand alone
Program only for Li battery
Unique yellow-orange color backlit LCD
Energetic case with matt black & yellow-orange color

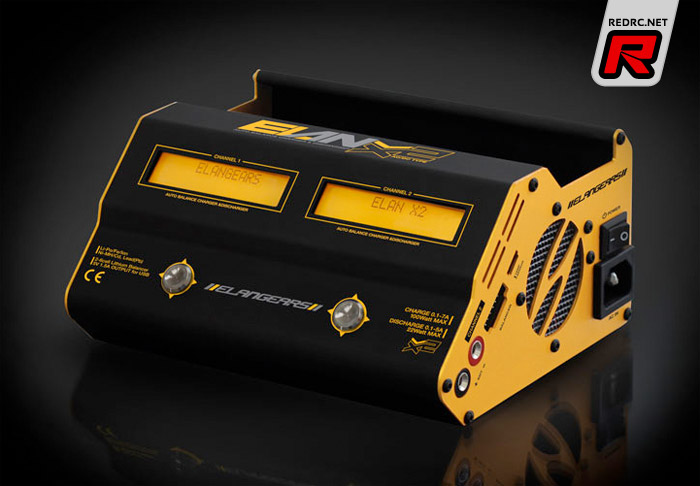

ELAN X2 AC/DC
Operation Power : DC 11 ~ 16V
AC 100 ~ 240V (50/60Hz)
Output port : DUAL
Charging current : CH1 0.1 ~ 7A (Max. 100W)
… CH2 0.1 ~ 7A (Max. 100W)
Discharging current : CH1 0.1 ~ 5A (Max. 22W)
CH2 0.1 ~ 5A (Max. 22W)
Battery available : Li-Po : 1~6S / Li-Fe : 1~6S / Li-Ion : 1~6S
Ni-MH : 1 ~ 14S / Ni-Cd : 1 ~ 14S
Pb(Lead) : 2 ~ 20V
Display : 2 Line 16 Characters Unique Orange Backlit LCD
Size : 178mm x 151mm x 86mm
Weight : 1300g
Features : Smart charging engine for Li battery
Independent dual channel charging
AC/DC power input
Charging and discharging for various batteries
Revisable battery preset
One-page program interface
High quality autobalance system for stand alone
Unique yellow-orange color backlit LCD
Energetic case with matt black & yellow-orange color
Source: Elangears [facebook.com]
