November 22, 2011

Team Associated RC10TC6.1 Factory Team kit

Team Associated RC10TC6.1 Factory Team kit

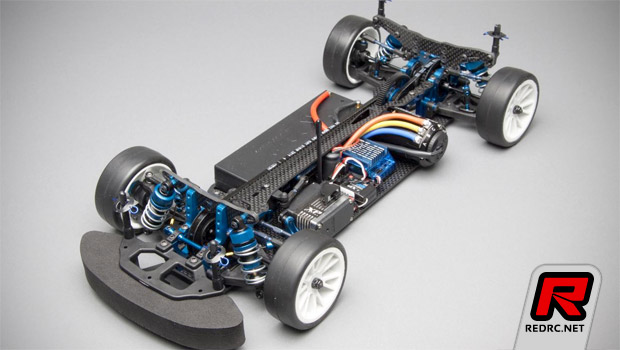

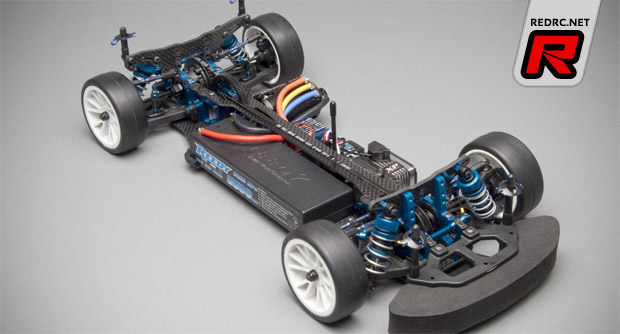

Used by Juho Levanen to claim the runner up spot at last weekend’s ATS race in Japan, the RC10TC6.1 Factory Team kit is the next evolutionary step in touring car design from Team Associated. Building on the successfully proven TC6, the designers behind the doors of Area 51 added even more features, making the TC6.1 easier to tune and drive. The narrow chassis has been designed around current brushless motor systems and LiPo batteries, optimizing weight distribution for superior handling. To further enhance handling performance, there is updated suspension arms for increased stiffness and strength. These new suspension arms feature finer shock adjustments to help get the TC6.1 totally dialed in.

Team Associated RC10TC6.1 Factory Team kit

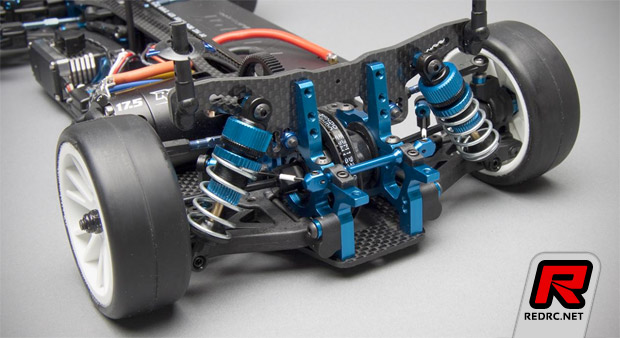

New caster blocks and rear hubs found in the TC6.1 feature integrated inserts for caster and rear-toe angle adjustments. Now you can change these angles by merely changing the inserts and not the whole assemblies, making the TC6.1 even quicker and easier to tune to the track conditions.

Team Associated RC10TC6.1 Factory Team kit

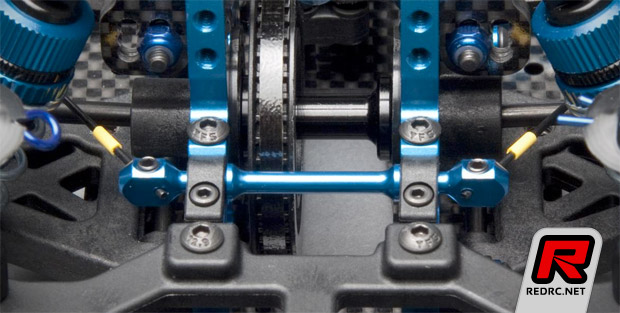

The TC6.1 features the new H.D.R.C. (High Definition Roll Control) system, taking anti-roll bar technology to the next level. The H.D.R.C. is built on a solid aluminum center member that rolls on a bearing surface. Roll stiffness is controlled and adjusted by the two wires that mount into the sides of the aluminum center member and link to the suspension arms. By removing the torsional flex with the aluminum center member, a higher definition of roll control is achieved with the different wire options.

Team Associated RC10TC6.1 Factory Team kit

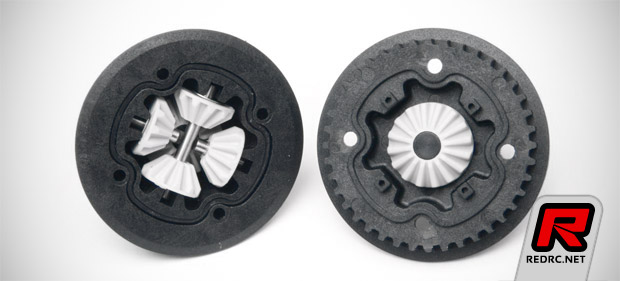

New for the TC6.1 is the lightweight rear gear differential that provides maximum performance and low maintenance. The front spool now features replaceable composite outdrives that still retain the low friction, free movement performance of the CVA blades, while being much more economical to replace after a hard impact. Symmetrical blue aluminum bulkheads and cross-compatibility with TC6 chassis components also help make the TC6.1 more economical to run.

Team Associated RC10TC6.1 Factory Team kit

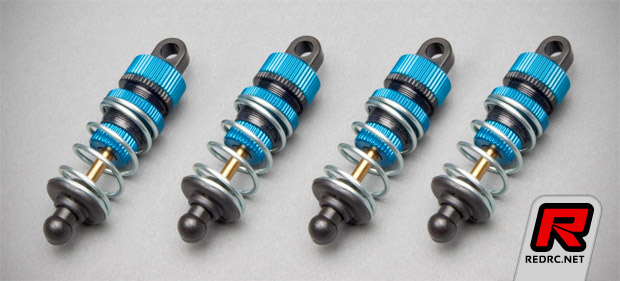

The TC6.1 comes equipped with the Factory Team VCS3 shock package that features hard-anodized threaded shock bodies with bottom-loaded seals. The VCS3 shocks are super smooth and have an increased stroke for more up-travel at the wheels, all adding up to more consistent overall traction.

Team Associated RC10TC6.1 Factory Team kit

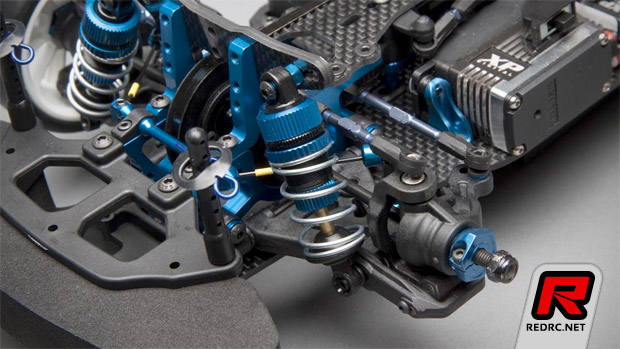

Multi-position steering system with additional Ackermann options and an improved steering input rate gives the TC6.1 more consistent handling. Blue titanium turnbuckles come with new ballcup eyelets for easier access to the ball studs.

Features
– Updated suspension arms for increased stiffness and strength, as well as finer shock adjustments
– Hubs and caster blocks use integrated inserts for adjustable caster and toe angles
– H.D.R.C. (High Definition Roll Control) system
– Lightweight rear gear diff for maximum performance and minimal maintenance
– Front spool with replaceable composite outdrives
– Offset arm mounts help increase durability and minimize shims between mount and bulkhead
– Ultra-narrow chassis layout optimized for Lithium Batteries and Brushless Motors
– Symmetrical bulkhead layout minimizes spare part cost
– Multi-position steering system to fine-tune Ackermann/steering rates
– VCS3 Shock with hard-anodized threaded shock bodies
– Titanium turnbuckles with new ballcup eyelets for easy access to ball stud
– 16 precision ball bearings
– Cross-compatibility with TC6 chassis components

Team Associated RC10TC6.1 Factory Team kit

Team Associated RC10TC6.1 Factory Team kit

Team Associated RC10TC6.1 Factory Team kit

Source: Associated [rc10.com]
