Sonic Nitro Engines V.12T 2.1cc TC engine

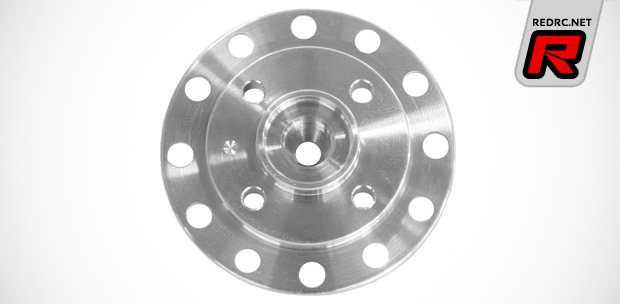

Sonic Nitro Engines have released details on their V.12T 2.1cc touring car engine. All components have been made from the finest materials to ensure high durability and reliability. Equipped with a 3 ports sleeve with ‘teardrop’ work and a CNC machined flat piston, the engine provides great power over the entire RPM range while having a very efficient fuel consumption. The 12mm turbo crankshaft is filled with a silicone insert to reduce the inertia and improve the fuel flow while the special back plate, the optimized crankcase and the the ‘knife edged’ aerodynamic connecting rod help even more to reduce turbulence inside the engine. A special turbo combustion chamber with a cooling fin and the super lightweight cooling head ensure best heat dispersion to keep the engine temperature at a moderate level. High quality Swiss ball bearings, a modern composite valve carburetor and a 5,4mm aluminium venturi complete this new high competition engine. All Sonic engines will be available from next week on.

Features:

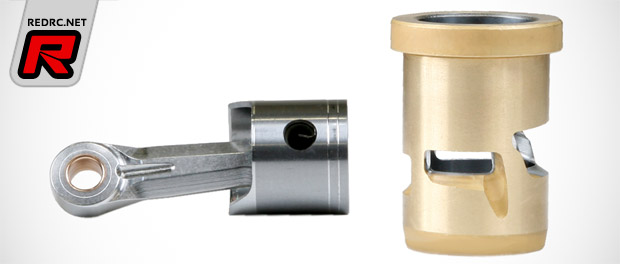

– 3 port hard chromed sleeve
– CNC machined flat piston

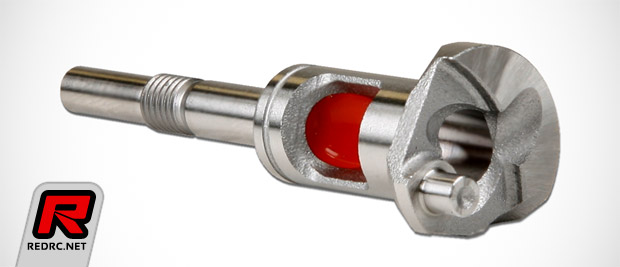

– 12mm turbo crankshaft with silicon insert
– Aerodynamic “knife edged” connecting rod
– Turbo combustion chamber with cooling fin
– Lightweight cooling head for low C.G.

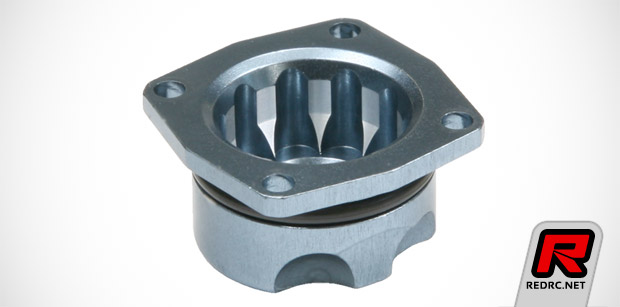

– Modified backplate for improved fuel flow
– 12mm high quality Swiss main bearing
– Composite slide valve carburettor
– 5,4mm aluminium venturi

Technical data:
– Displacement: 2,11ccm
– Max power: 1,75 HP @ 41.500 U/min
– Bore: 13,80mm
– Stroke: 14,00mm
– Ports: 3
– Front bearing: 6x16x5mm
– Rear bearing: 14×25,4x6mm
– Glowplug: Sonic P6TC turbo plug
– Weight: 215g

Source: Sonic Engines [sonice-engines.com]
