Sonic V.21B 3.5cc buggy engine

More news from Sonic Nitro Engines with details on the Sonic V.21B 3.5cc buggy engine. All components have been made from the finest materials to ensure high durability and reliability. Equipped with a 5 ports sleeve and a CNC machined flat piston, the engine provides great power over the entire RPM range while having a very efficient fuel consumption which can be crucial in the finals. The 14mm turbo crankshaft is filled with a silicone insert to reduce the inertia and improve the fuel flow while the optimized crankcase and the the “knife edged” aerodynamic connecting rod help even more to reduce turbulences inside the engine. A special turbo combustion chamber with a cooling fin and the super lightweight cooling head ensure best heat dispersion to keep the engine temperature at a moderate level. High quality Swiss ball bearings, a dust protected front bearing, a modern composite valve carburetor and a 5.4mm aluminium venturi complete this new high competition engine.

Features:

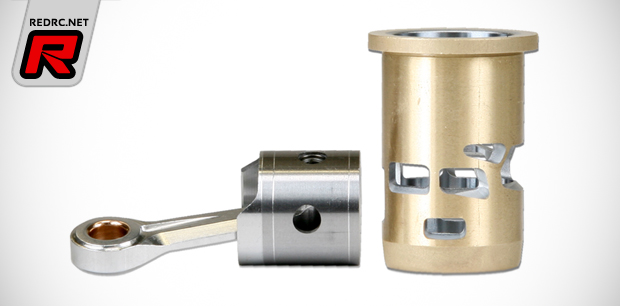

– 5 port hard chromed sleeve
– CNC machined flat piston

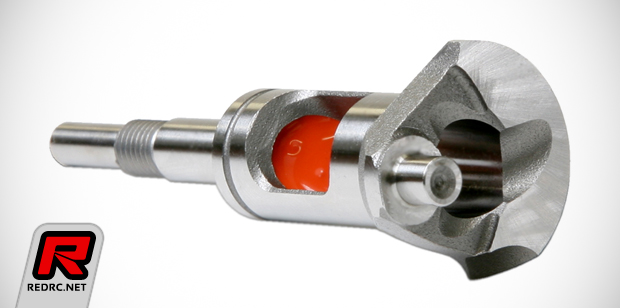

– 14mm turbo crankshaft with silicon insert
– Aerodynamic “knife edged” connecting rod
– Turbo combustion chamber with cooling fin

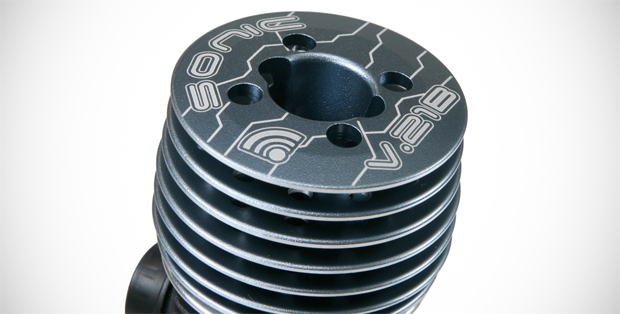

– Lightweight cooling head for low C.G.
– 14mm high quality Swiss main bearing
– Dust-protected front bearing

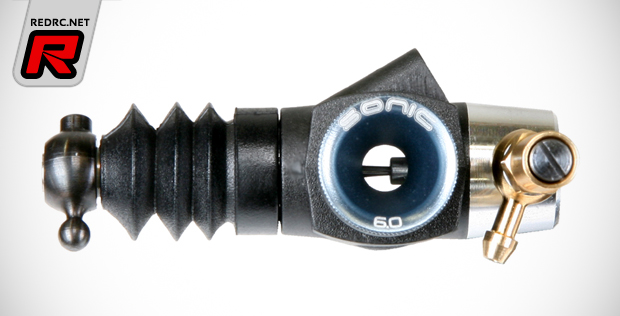

– Composite slide valve carburetor
– 6mm and 7mm aluminium venturi

Technical data:
– Displacement: 3,49ccm
– Max power: 2,65 HP @ 33.500 U/min
– Bore: 16,26mm
– Stroke: 16,80mm
– Ports: 5
– Front bearing: 7x19x6mm
– Rear bearing: 14×25,4x6mm
– Glowplug: Sonic S5H turbo plug
– Weight: 340g

Source: Sonic Engines [sonice-engines.com]
