January 29, 2012

Team Orion Advantage Touch charger

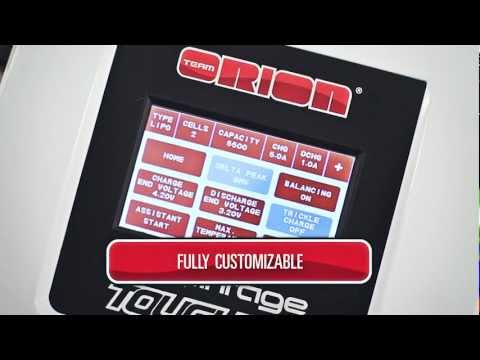

The Advantage Touch charger is a new generation of high tech charger from Team Orion. Equipped with a touch sensitive color LCD screen and specialized touch software, it’s a brand new experience in the field of battery charging. The centre piece of this new charger is the Spectra TFT color touch screen which allows you to reach all the different features of the system with ease. The charger itself is an AC/DC unit with 0.1 to 5A output current and 0.1 to 1.0A discharge current and it can handle all the modern lithium based battery types up to 6 cells. Rather than try to explain any more about the Advantage Touch just check out the nice video they made to go along with it below.


– Microprocessor controlled advanced digital circuit
– Input Voltage: 11-18VDC and 100-240VAC
– Screen: Spectra TFT 400×240 color touch screen
– Functions: charge, discharge, storage, cycle, balance
– Charging Capability: LiPo/LiFe/LiIon 1-6 cells, NiMH/NiCd 1-15 cells, Pb 2-20V
– Charge Current: adjustable 0.1-5A (variable with number of cells, 50W max)
– Discharge Current: adjustable 0.1-1A (variable with number of cells, 5W max)
– Charge and discharge curve graphic engine
– Charge Assistant
– ATTS Advanced Touch Technology Software
– HPC High Precision Charging System
– Cycle modes: C->D, D->C, D->C->D
– Unique 4-in-1 Balancing Board included (XH, TP/FP, EH, HP/PQ)
– Balancing: adjustable on/off
– Advanced Stand Alone Balancing
– Discharge Cut-off voltage: adjustable
– Multi-Protection System: Input and output reverse polarity protection
– Multi Language Menu (updatable via USB port)
– Charge and discharge data storage for later review
– Adjustable automatic delta-peak charge cutoff
– Temperature monitoring and cut-off (optional)
– TRX-, Deans-, Tamiya-, Crocodile Clips, BEC- and Futaba- charging cables
– Dimensions: L170xW158xH45mm
– Weight: 662g

Source: Team Orion [teamorion.com]
