August 7, 2012

Team Associated RC12R5.2 Factory Team kit

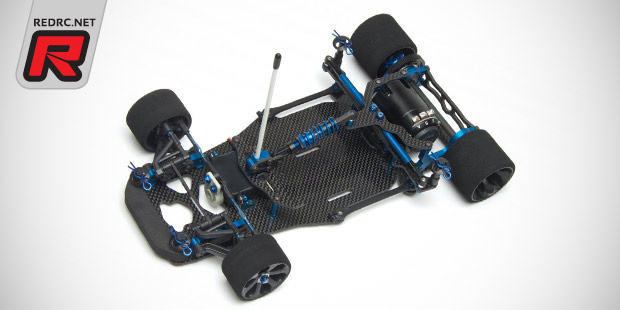

Team Associated introduce the RC12R5.2 Factory Team kit. Based on the R5.1 the kit features the well known dynamic strut front end with symmetrical components with updated lower suspension arms with more accurate mounting for a more precise build every time. The 12R5.2 continues to use the wide three-point rear pod optimized for fitting brushless motors, with beefed up rear blue aluminum bulkheads to maximize rigidity and durability. Tying the two bulkheads together is the new carbon fiber motor mount cross-brace to gain further rear end rigidity and durability. Also included in the kit is a 2.5mm woven carbon fibre chassis, pivot-ball link rear suspension, refined aluminum side spring retainers and a center shock with through-shaft design.

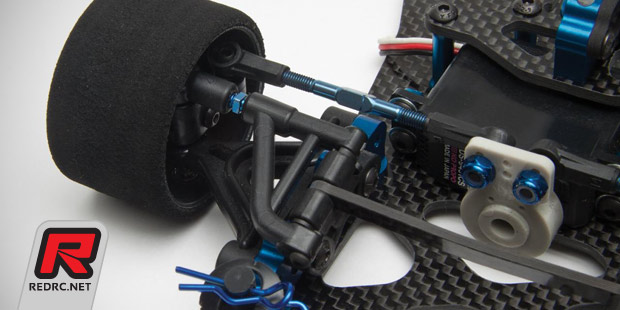

– I.F.M.A.R. World Championship-winning Dynamic Strut front end features symmetrical components with adjustable caster and track width, and includes updated lower control arms for more precise mounting
– Updated motor mount and left rear bulkhead for increased durability

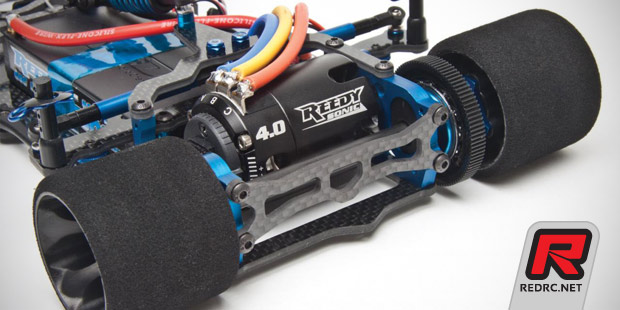

– Brushless motor optimized 3-point upper pod plate with graphite motor mount cross-brace
– Ultra-rigid 2.5mm thick chassis featuring centralized LiPo battery mounting position that fits R.O.A.R.-approved 3.7V LiPo battery packs
– Aluminum side spring retainers for easier and more accurate adjustments

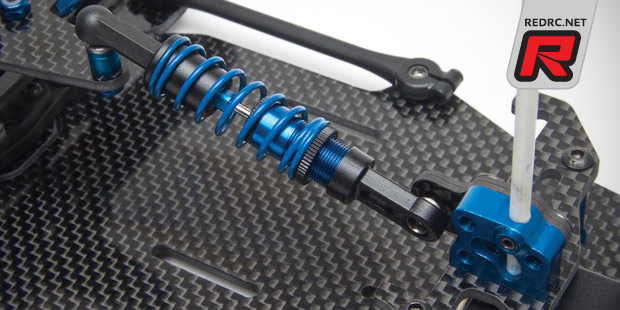

– Innovative through-shaft center shock
– Side damper tubes for freer rear pod movement
– Pivot-Ball rear pod design with hard anodized aluminum pivot balls and updated rear pod links

Source: Associated []
