May 2, 2013

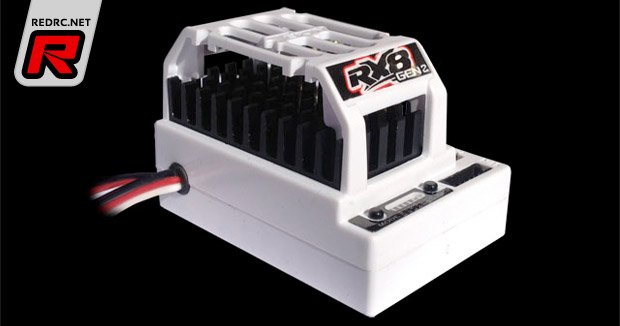

Tekin RX8 Gen2 ESC

Tekin RX8 Gen2 ESC

The Tekin RX8 Gen2 brings new features and next level performance to the popular RX8 series speed controls. Designed using today’s state of the art micro components, the Gen2 delivers advanced tuning options for the hardcore racer. When it comes to 1/8th scale racing, this ESC has what racers demand, reliability, precise control and unmatched power handling capability. Packed with new features, it delivers a programmable high-voltage BEC, an EZ Access Port for HotWire communication and Datalogging capabilities in a small sized package.

Tekin RX8 Gen2 ESC

– Ultra-smooth and Precise Throttle and Braking Control
– Compatible with Sensored/Sensorless Brushless and Brushed Motors
– Easily Access Programming, Anywhere, Anytime
– Datalogging Capability
– High Voltage Programmable BEC
– EZ Access HotWire Programming Port
– HotWire PC Interface for Advanced Programming and Updating
– D2: Dual Drive Mode Technology
– On-Board Temperature Indicator
– Removable/Replaceable Cooling Fan
– HDAC: High Density Copper PCB’s
– Sensor Plug for Precise Commutation with all Motors
– Gold-plated Solder Posts for Easy Wire Replacement
– Self Test Diagnostics and Factory Reset
– Pit Tune Mode
– DGF2: Digital Glitch Filtering V2
– QuickTune Programming
– One-Touch Radio Calibration

Controls: Forward/Brake/Reverse
Input Voltage: 2S-6S Lipo
BEC: 6.0v / 7.4v 7amps
Motor Limit Brushless Mode: No Limit
Motor Limit Brushed Fwd Only Mode: No Limit
Motor Limit Brushed Fwd/Rev Mode: No Limit
Max Current: 220amps per phase
Timing Profiles: 7 choices (on board)
Brushed Modes: Fwd Only, Fwd/Rev, Rev Delay
Brushless Modes: Fwd Only, Fwd/Rev, Rev Delay
Dimensions: 1.5 x 2.2 x 1.4in (38 x 55.8 x 25.5mm)
Weight: 2.7oz / 76.5g

Source: Tekin []
