Viper VF8 4-pole 1/8th brushless motor

Viper VF8 4-pole 1/8th brushless motor

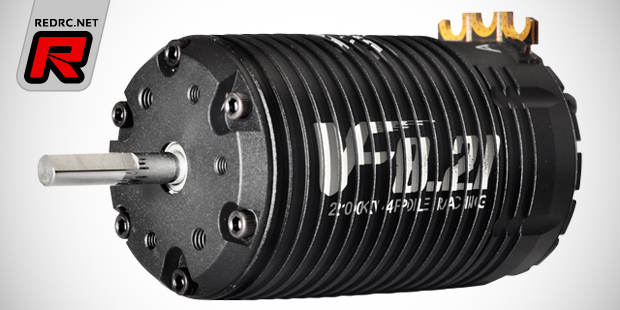

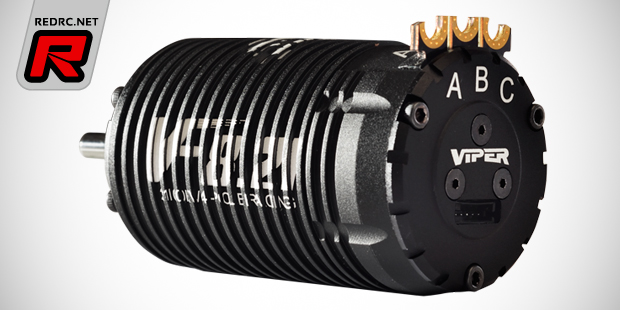

Viper announce the release of the VF8 1/8 scale 4-pole electric brushless motor. It features a CNC-machined 6061 T6 billet aluminium heatsink can, aluminium end bells and an epoxy-balanced rotor while heavy-duty solder tabs will take large diameter wires to maximise performance. The motor is still light of weight at around 317g, measures 69.4×41.8mm and is available in three KV ratings of 1900, 2100 and 2700.

Viper VF8 4-pole 1/8th brushless motor

Features
– 4-pole/12-slot design for on-road and off-road use
– 3 kv options
– Full aluminium design with CNC-machined 6061-T ribbed can
– Low resistance high current soldering tabs
– High performance ball bearings for maximum performance and life cycle

Specifications
– Length: 69.4mm
– Diameter: 41.8mm
– Shaft dimensions: 19x5mm
– Weight: 317g

Viper VF8 4-pole 1/8th brushless motor

Source: Viper [viper-rc.com]
