December 14, 2013

Picco P-Max .21 Revo & T-Maxx nitro engine

Picco P-Max .21 Revo & T-Maxx nitro engine

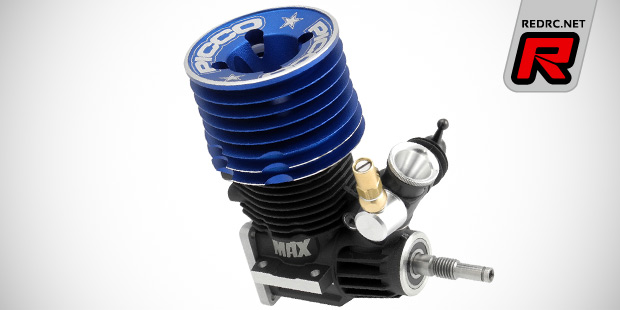

Picco introduce their new P-Max .21 nitro engine for the Traxxas Revo and T-Maxx. The newly designed engine features a more efficient cooling head, a knife edge shaped connecting rod, silicone-filled crankshaft and a new crankshaft timing making for improved power output comparable to the larger .26 and .28 engines. The engines that was developed in cooperation with Picco-Torque U.S. distributors Kevco Racing easily adapts to Traxxas’ Easy Start and pull start engines and it features a 3-port hard-chromed liner, CNC-machined billet piston, a turbo combustion camber insert and a 13mm main bearing.

Picco P-Max .21 Revo & T-Maxx nitro engine

Features:
– 3 Ports hard chromed liner
– CNC-machined billet Piston
– 13mm turbo silicone filled crankshaft
– Knife edged connecting rod
– Separate turbo combustion chamber insert
– 13mm main bearing
– Lightweight cooling head
– Composite slide carburettor with 7,5mm venturi

Picco P-Max .21 Revo & T-Maxx nitro engine

Specification:
– Displacement: 3.49cc
– Bore: 16.25mm
– Stroke: 16.80mm
– Output: 2.7hp @ 37,000rpm
– Weight: 330g

Source: Picco [teampicco.com]
