January 13, 2014

Team Orion Advantage Touch Duo charger

Team Orion Advantage Touch Duo charger

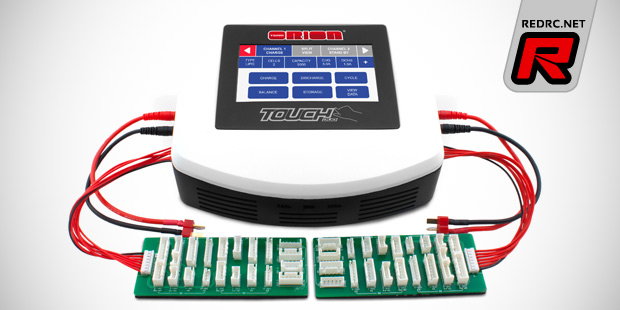

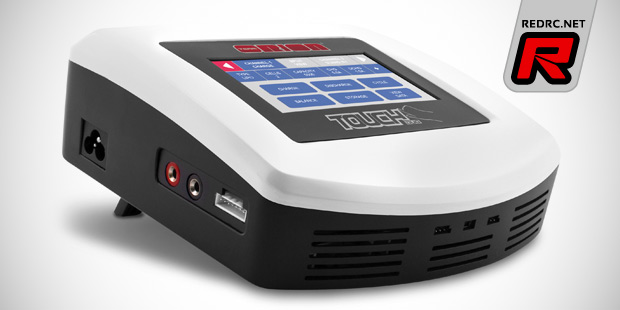

Team Orion introduce the Advantage Touch Duo AC/DC multi-chemistry charger. Building on the experience gained with the single output Advantage Touch chargers the device features a build-in 200 watts power supply for up to 10A charge current per output for simultaneous charging of up to two 6S LiPo battery packs. A colour touch screen display show all of the important charging, discharging and balancing parameters and a new split view allows to display  the data of both channels. The charger is also equipped with a USB connector for firmware upgrades and two temperature probe connectors. Included with the charger come two 4-in-1 balancing boards.

– Touch screen dual channel multi-chemistry charger
– Large size 4″ colour touch screen
– Integrated 200W AC power supply
– 2x 6 memory slots for charge settings
– 200W (100W/channel) charge power, 2x10A max
– Charges 1-6S LiPo/LiFe/LiIon, 1-16 cell NiMH/NiCd and 1-20 cell Pb batteries
– Multi language easy to use interface
– New split view data display
– Wide array of adjustable parameters
– Charge, discharge, cycle, storage and balance functions.
– Input/output reverse polarity and short circuit protection
– Two 4-in-1 balancing boards included

Team Orion Advantage Touch Duo charger

– AC Input voltage: 100-120VAC/200-240VAC
– DC Input voltage: 11.0V-18.0V
– Charge current: 0.1A-10.0A x2
– Discharge current: 0.1A-5.0A x2
– Charge power: Max 100W x2
– Discharge power: Max 20W x2
– Balance current: 250mA
– Balance tolerance: ±0.01V
– NiCd/NiMH batteries 1-16cells
– Lithium batteries LiPo, LiIon, LiFe: 1-6S
– Pb batteries: 2V-20V
– Dimensions: L202 x W190 x H74mm
– Weight: 1340g


Source: Team Orion [teamorion.com]
