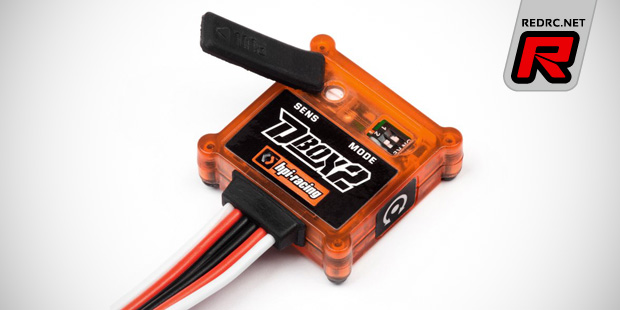

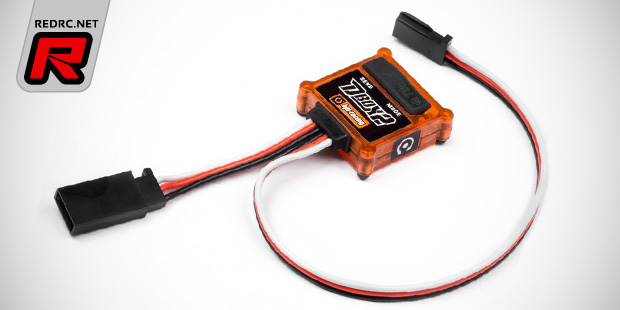

HPI D-Box 2 stability control system

HPI introduce the D-Box 2 adjustable stability system for virtually every radio controlled car. Although aimed for the use in drift cars, the gyro can also be used in nitro and electric on-road and off-road vehicles as it improves vehicle control on slippery surfaces. Based on the experience gained with the original D-Box, the follow-up device offers four different settings to adjust the gyro sensitivity for perfect vehicle control without loosing steering response or gyro support. The device is simply connected between the steering servo and receiver, measures around 26.5x27x10mm and weights in at 9.5g. Before using the D-Box at a race meeting please check with the rules as tracks do not allow the use of gyros for fairness reasons.

Specifications
– Dimensions: 26.5×27.0×10.0mm (excluding wire)
– Weight: 9.5g
– Operating voltage: 4.8V-7.4V
– Power consumption: 10mA/6V
– Neutral servo signal: 1.5mSec (1.45-1.55mSec)
– Servo signal cycle: 3-22mSec (Digital servo mode support)

Source: HPI [hpiracing.com]
