iRacing X9 & X9GT .21 on-road engines

iRacing X9 & X9GT .21 on-road engines

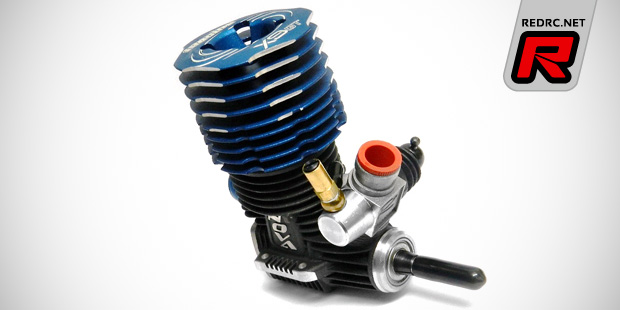

New from Italian brand iRacing come the X9 and X9GT 3.5cc nitro on-road engines. Produced by Novarossi the engines are built to meet iRacing’s specifications and first up is the X9 engine for 1/8th on-road cars. The 9-port engine offers a dual balanced 14.5mm crankshaft, a reinforced crankcase and a lightweight cooling head while the X9GT is a dedicated GT racing engine with basically the same specifications as the X9 but a larger cooling head for improved heat dissipation under GT bodyshells. Both engines are designed for the use with 25 percent nitro fuel and they come with blue anodised cooling heads with white laser engraving.

Specifications:
– Displacement: 3.49cc
– Max Power/RPM: 39,100RPM
– Usable RPM range: 6,000-46,300RPM
– Bore x stroke: 16.26 x 16.80mm
– Sleeve: 9 port
– Rear Bearing: High speed
– Front Bearing: Steel
– Crankshaft : 14.5 mm – turbo
– Carburettor: Aluminium – 9 mm – sliding
– Glow: Turbo (C7TGF)
– Exhaust: Rear
– Weight: 336g
– Fuel: 25% nitro

iRacing X9 & X9GT .21 on-road engines
Source: BMT [bmt-team.com]
