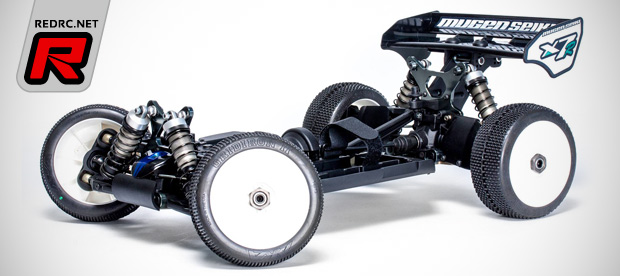

Mugen MBX7R Evo 1/8th E-buggy kit

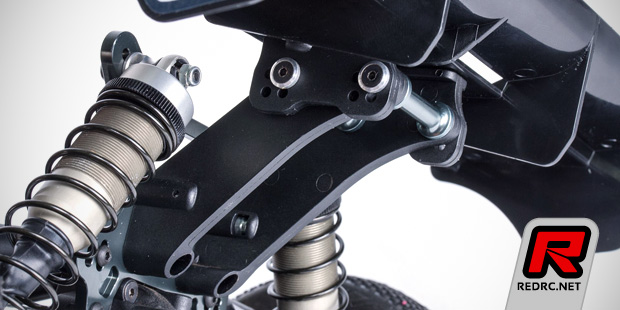

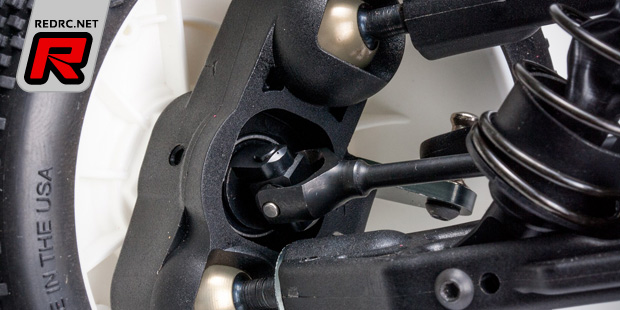

Based off of the MBX7R is Mugen’s latest 1/8th E-buggy kit, the MBX7R Eco. The kit features some subtle design changes and updated parts compared to the MBX7 Eco, as are the 7075 aluminium chassis with optimised side angles for increases strength and better on-track feeling on all surfaces. Also part of the package are newly designed front uprights with a trailing axle position and 8x16mm bearings. Additionally the rear hubs received a make over to allow the use of 8×16 or 15x21mm bearings in combination with the newly designed rear driveshafts. While being in the suspension compartment, the 7R Eco also features new 1.6mm shorter front A-arms to allow the use of a spacer between the arm and the pivot ball while the rear arms are adapted to make way for the new rear universals. Other new parts include a revised Ackermann plate with five mounting positions for the steering links, and a new wing stay to move the wing forward as far as 10.5mm for improved traction. The kit is rounded out by a set of 16mm front and rear big bore shock absorbers.

MBX7R Eco Features:
– Heavy duty aluminium motor mount housing A
– Heavy duty aluminium motor mount B
– Lightweight conical gears
– Straight cut conical and ring differential gears

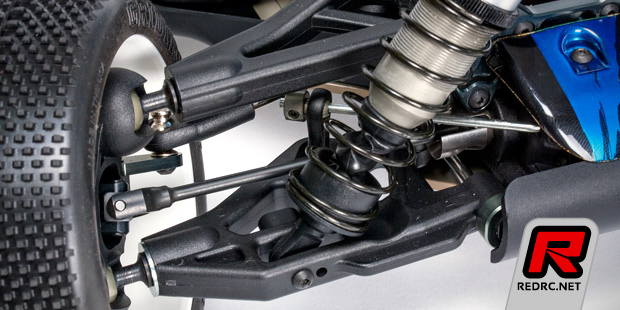

– Specially designed front upper and lower suspension arms, front hub carriers, rear suspension arms and hub carriers

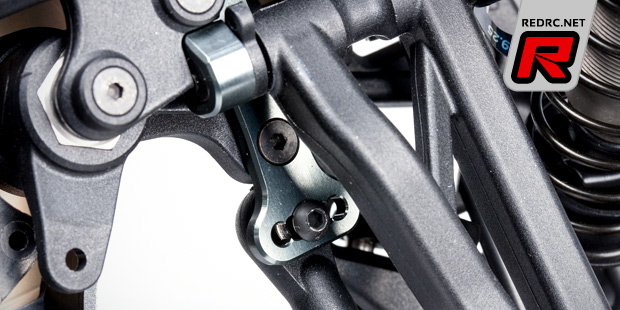

– Fully adjustable steering with new geometry, servo saver and Ackermann plate
– Front/Rear 16mm hard anodised threaded shocks with 3.5mm shock shafts and slim rubber boots

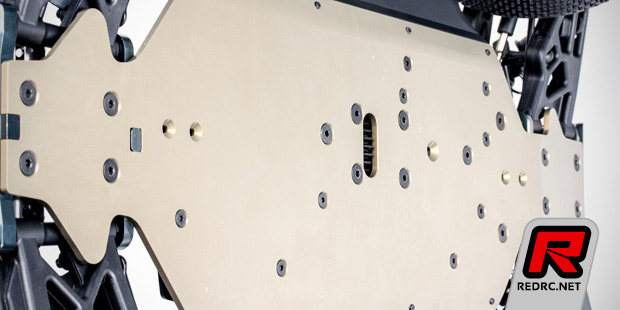

– 3mm A7075 hard anodised chassis
– 5mm A7075 aluminium front shock tower
– 4mm A7075 aluminium rear shock tower
– 5mm A7075 aluminium lower suspension mounts for optimised geometry

Source: Mugen Seiki [mugenseiki.com]
