Schelle Racing Innovations B5 aluminium rear hubs

Schelle Racing Innovations B5 aluminium rear hubs

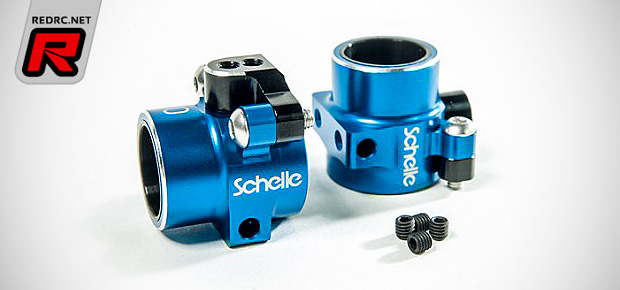

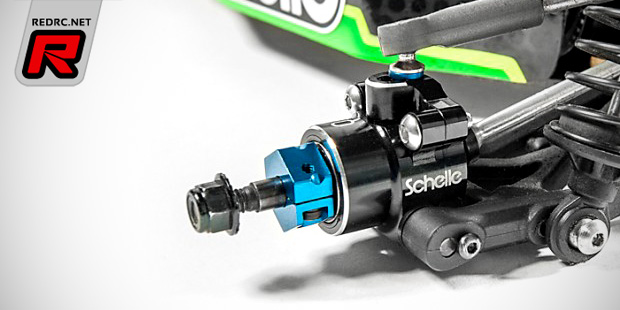

Schelle introduce a new 2-piece hub concept for the Team Associated B5 and T5 platform. The 2-piece design with a replaceable upper cab increases adjustment and durability as the upper part can be spaced away from the main hub with ballstud shims, allowing fine “in-between” adjustments for the rear upper link. True to the kit geometry, the zero degree toe aluminium hubs are of a symmetric design with shared parts left and right. Plastic bearing inserts and hinge pin set screws make for the highest possible precision and slop-free parts fitment. The upper cap design reduces leverage on the outer ballstud, as well as increasing shock clearance for the turnbuckle. The hubs come in black or blue anodising and are available now.

Schelle Racing Innovations B5 aluminium rear hubs

Schelle Racing Innovations B5 aluminium rear hubs

 Source: Schelle Racing Innovations [schelleracing.com]
