May 7, 2015

Reedy 423-S Compact Balance Charger

Reedy 423-S Compact Balance Charger

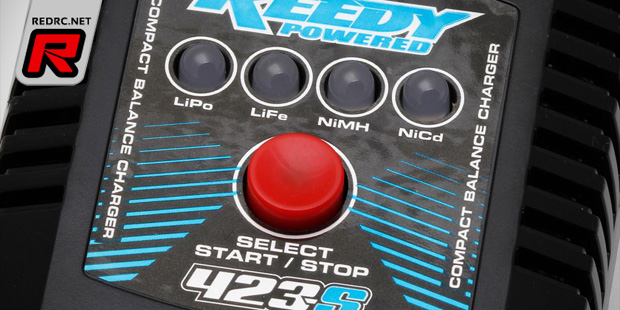

Reedy introduce the 423-S Compact Balance Charger with single-button operation. The charging process is as simple as connecting the battery, selecting the battery type, and pressing the start button. But the charger is not only easy to use, it is highly versatile as it is capable of charging LiPo, LiFe, NiMH, or NiCd batteries, making a one-stop solution for enthusiasts who want the flexibility of charging a variety of different battery types and configurations for a wide range of vehicle types and scales.

Features
– AC 100-240V power input
– LiPo/LiFe/NiMH/NiCd compatible
– Automatic charge rate selection
– Automatic capacity and cell count detection
– Simple one-button operation
– LED charge status indicators
– T-plug output connector
– Integrated XH-style balance ports
– Reverse and short-circuit protection
– Safety timer

Reedy 423-S Compact Balance Charger

Specifications
– AC input: 100-240V
– Charger circuit power: 35W
– Maximum charge rate: 4.0A
– Cell count, LiPo/LiFe: 2-3 Series
– Cell count, NiMH/NiCd: 1-8 Cells
– Dimensions (mm): 128 x 66 x 37
– Weight (g): 206
– Charge connector: T-plug
– Balance connector: XH

Source: Team Associated [teamassociated.com]
