July 22, 2015

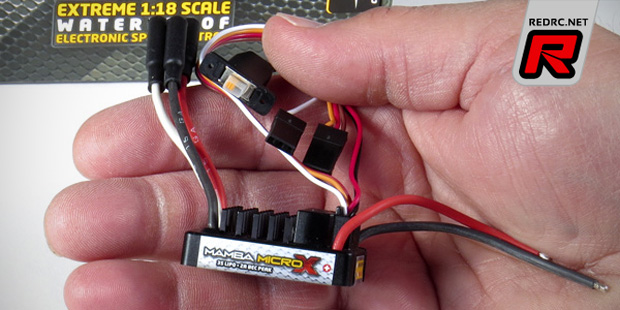

Castle Creations Mamba Micro X brushless ESC

Castle Creations Mamba Micro X brushless ESC

Castle Creation soon have the new Mamba Micro X brushless speed controller available. The waterproof speedo is suitable for 2WD or 4WD vehicles such as the Mini-LST, Half-Eight, Mini-Quake and Spyder vehicles. The controller received a heavy-duty BEC to handle today’s high-draw digital servos and also features a programmable auxiliary wire that allows the user to make “on-the-go” adjustments to several settings, such as torque control and max throttle, directly from a compatible transmitter. This allows to fine-tune the performance of the Micro X to meet changing driving conditions. New to the Micro X is the ability to run sensored brushless motors with the purchase of an optional sensor harness. The Micro X is cable of running on 2S up to 3S LiPo power with a highly-efficient heat sink design to keep the controller running cool, even when pushing it hard in mud, sand and other heavy power applications. The ESC is available as controller only or as controller plus motor combo.

– Input voltage range: 2S to 3S LiPo, 12.6V
– BEC: Adjustable: 5.5V or 7.5V (2A peak), default 5.5V
– Brake: Proportional
– Reversible: Yes, with lockout
– On/off switch: Yes, waterproof
– ESC cooling fan: No
– Size: 41x19x28mm
– Weight: 34g

Castle Creations Mamba Micro X brushless ESC
Source: Castle Creations [castlecreations.com]
