November 4, 2015

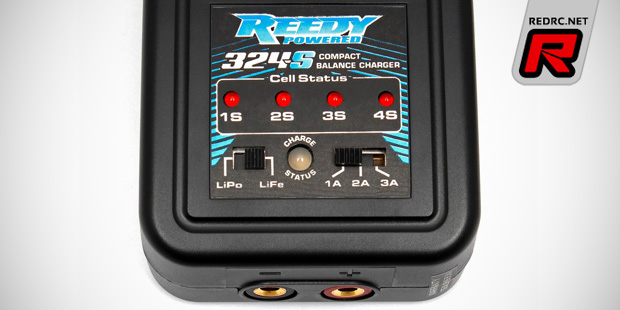

Reedy 324-S compact balance charger

Reedy 324-S compact balance charger

New from Team Associated comes the Reedy 324-S compact balance charger. Easy to use and in a compact package, the device is specifically designed to balance charge LiPo and LiFe batteries in 2S to 4S configurations. Charging is as simple as selecting the battery type and charge rate, and then connecting the battery. Once connected, the charging process begins automatically. Convenient LEDs provide charging information and also display error codes for a faulty battery or poor connections.

– AC 100-240V power input
– LiPo/LiFe compatible
– 1A/2A/3A selectable charge rate
– LED charge status indicators
– 4mm output ports
– T-plug charge lead included
– Integrated XH-style balance ports
– Reverse and short-circuit protection
– Compact size

Reedy 324-S compact balance charger

– AC input: 100-240V, 50-60Hz
– Battery type: LiPo/LiFe
– Cell count: 2-4 Series
– Charger circuit Power: 30W
– Charge rate: 1A/2A/3A Selectable
– Dimensions (mm): 110.7 x 69.4 x 40.5
– Weight (g): 195
– Charge connector: 4mm sockets, T-Plug
– Balance connector: XH

Source: Team Associated []
