December 23, 2015

PowerHD Storm-5 & Storm-4 brushless servos

PowerHD Storm-5 & Storm-4 brushless servos

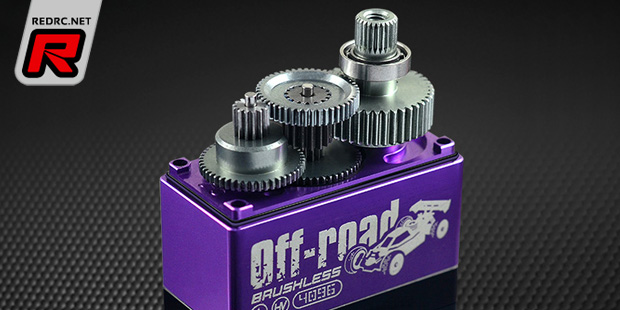

PowerHD have two new high-performance servos for 1/8th scale applications available. The Storm-5 (0.066s/18kg-cm) and Storm-4 (0.085s/25kg-cm) offer CNC-machined all-aluminium cases, a super-high 4096 resolution as well as strong titanium alloy gears and a heat-resistant brushless motor. The high-voltage compatible servos are available separately or as a combo set including one Storm-5 (steering) and one Storm-4 (throttle) servo.

Storm-5 specifications:
– Torque (6.0V): 15.0 kg-cm
– Torque (7.4V): 18.0 kg-cm
– Speed (6.0V): 0.085s
– Speed (7.4V): 0.066s
– Operating voltage: 6.0-8.4V
– Weight: 80g
– Bearing type: Dual ball bearing
– Motor type: Brushless motor
– Gear type: Titanium & steel
– Size:40.0×20.0x38.0mm

PowerHD Storm-5 & Storm-4 brushless servos

Storm-4 specifications:
– Torque (6.0V): 21.0 kg-cm
– Torque (7.4V): 25.0 kg-cm
– Speed (6.0V): 0.10s
– Speed (7.4V): 0.0.085s
– Operating voltage: 6.0-8.4V
– Weight: 80g
– Bearing type: Dual ball bearing
– Motor type: Brushless motor
– Gear type: Titanium & steel
– Size:40.0×20.0x38.0mm

Source: PowerHD [chd.hk]
