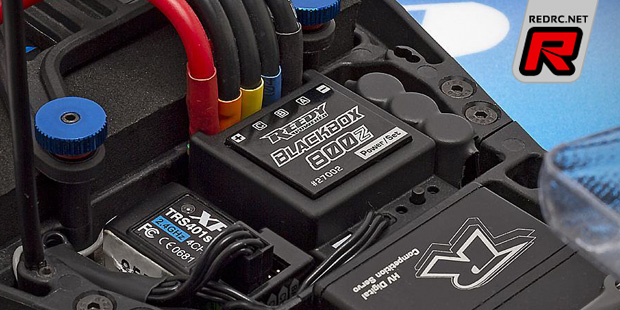

Reedy Blackbox 800Z zero timing speed controller

Reedy Blackbox 800Z zero timing speed controller

New from Reedy comes the Blackbox 800Z zero timing sensored brushless competition speed controller, a simple to use, economical, and powerful ESC for Spec class racers. The speedo was designed to offer excellent throttle and brake feel, a wide range of adjustability, and robust hardware. The compact, lightweight plastic housing with low-profile heatsink makes fitting the controller easy even in tight surroundings. The ESC comes pre-wired with 13 gauge wire and solder tabs make wire replacement easy while the on-board, single button programming allows to fine-tune parameters such as the drag brake, power profile, the drive and brake frequency.

– Lightweight plastic case with compact footprint
– Low-profile heat sink
– Fully adjustable brake and throttle functions
– On-board, single-button programming
– Zero-timing ROAR-approved software
– Low-resistance circuitry
– Precision throttle and brake control
– Solder tabs for easy wire placement
– 13-gauge power wires
– Compact external capacitor board
– Competition proven

– Voltage Input: 7.4V/2S LiPo
– On Resistance (Ω): 0.0004
– Continuous Current (A): 80
– Dimensions (mm): 40.2 x 31.0 x 18.8
– Weight w/o Wires (g): 37
– Motor Limit: 10.5T
– SBEC: 6.0V/3A

Reedy Blackbox 800Z zero timing speed controller

Source: Team Associated []
