JConcepts Hybrid 1/8th off-road wing

JConcepts Hybrid 1/8th off-road wing

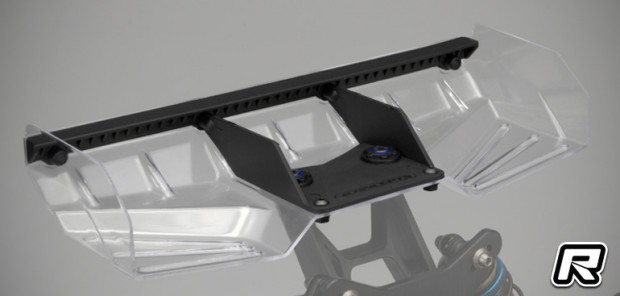

Seen for the first time at last week’s Dirt Nitro Challenge, JConcepts have now officially introduced the all-new Hybrid 1/8th off-road wing. The pre-trimmed polycarbonate wing formed in heavy-duty material has a hard chamfered leading edge to the side-dams while angular sections blend into the high-performance shape giving a location for that initial step and transition to the wing’s gurney position. At the rear of the wing rest 7 individual ribs which support the wings upper section as it transitions to the gurney and the wing set features injection moulded components which form the Hybrid combination.

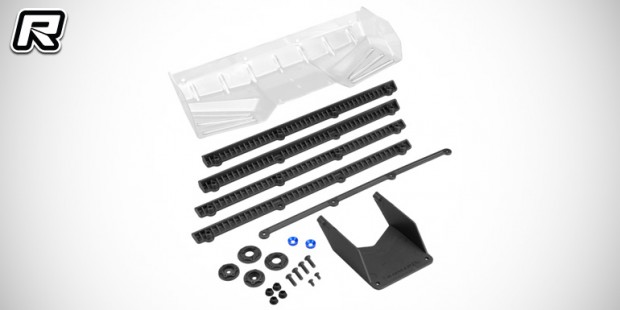

The centre divider drops into position, bolts to the main section and allows the user to mark vehicle mounting position by simply looking through to the grid located on the bottom. Gurney options include four individual bars with a long and short overhang giving two options for wing configurations with or without the centre divider. A rear gurney brace sits at the back of the wing beefing up the entire assembly. Attachment is complete by using four of the included 3x10mm button head screws clamping the unit together. Wing buttons are included with aluminium washer for screw down type builds while a body clip type mount can be used for other configurations. The wing set includes complete instruction for assembly, fitment information with notes and recommendations. The Hybrid wing can be used with or without centre divider for tuning purposes, however, using the centre divider on the TLR 8ight buggy is not recommended.

JConcepts Hybrid 1/8th off-road wing

JConcepts Hybrid 1/8th off-road wing

Source: JConcepts [jconcepts.net]
