April 21, 2016

Exotek 22 3.0 LCG aluminium gearbox set

Exotek 22 3.0 LCG aluminium gearbox set

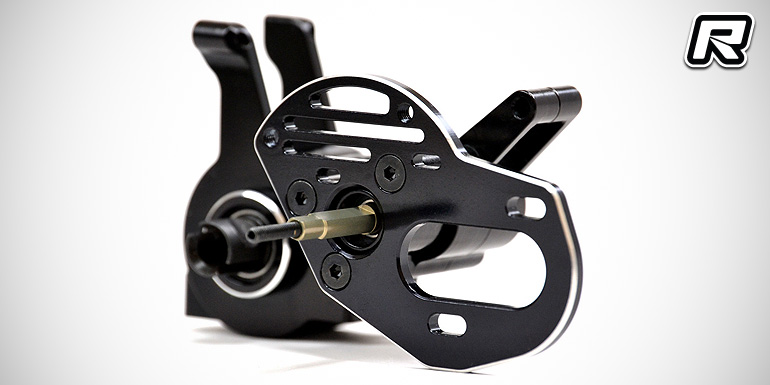

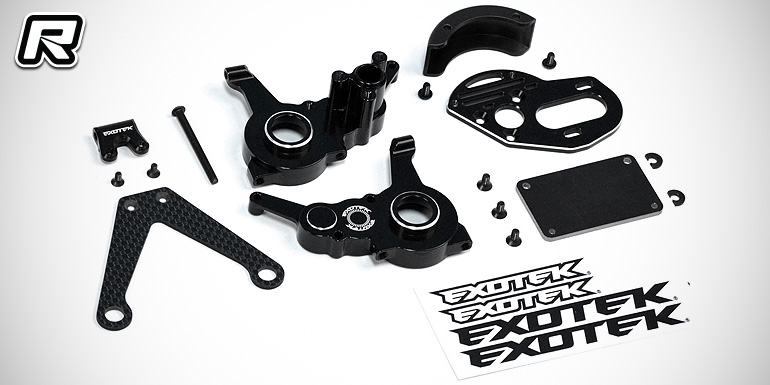

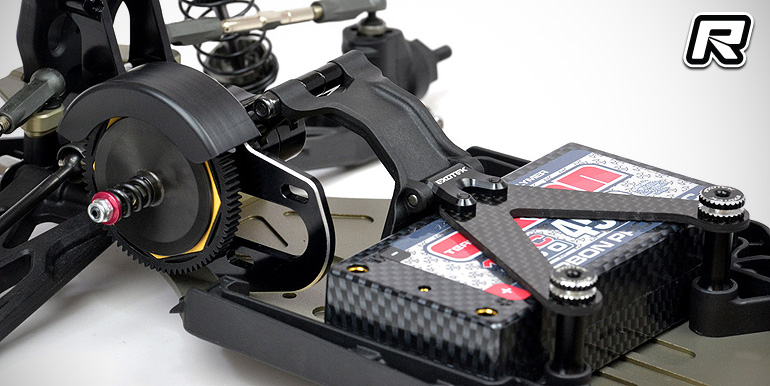

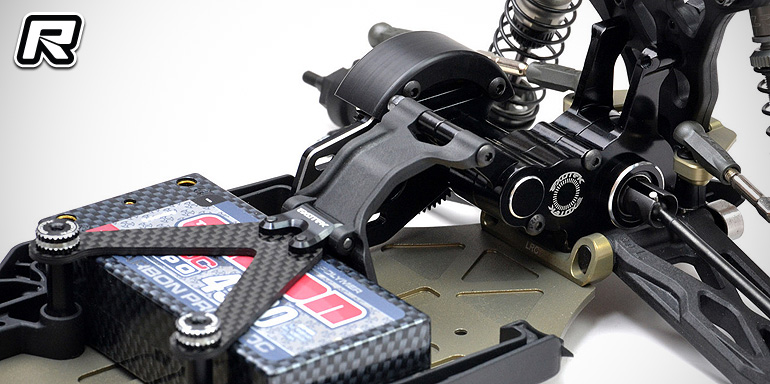

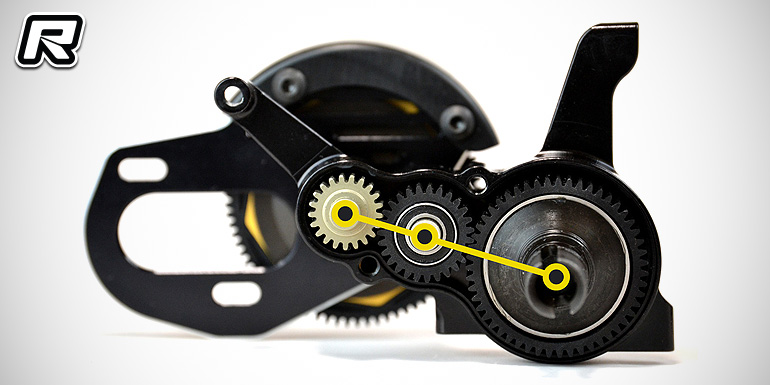

Following a first teaser image Exotek have now released full details on their all-new LCG gearbox set for the TLR 22 3.0 buggy. Centred around an aluminium gearbox with 3-gear setup the concersion let the three transmission gears operate in a straight line for an extra low centre of gravity and a smoother running idler gear. The diff case is machined from 7075 aluminium and the new motor plate is of a vented design to lower the motor temperatures. In addition to the lower centre of gravity the gearbox stiffens up the rear of the chassis as well as the shock tower for improved consistency on high-bite tracks. Using the gearbox requires to drill two extra holes into the chassis although the original gearbox can still be used, allowing for gearbox swaps if conditions call for it. Included in the set comes the black anodised and laser-etched gearbox, the alloy lightweight motor plate, a Delrin diff cover, carbon fibre battery strap with alloy hinge as well as alloy waterfall spacers, the chassis drill template, hardware and full instructions.


Exotek 22 3.0 LCG aluminium gearbox set

Exotek 22 3.0 LCG aluminium gearbox set

Exotek 22 3.0 LCG aluminium gearbox set

Exotek 22 3.0 LCG aluminium gearbox set

Exotek 22 3.0 LCG aluminium gearbox set

Exotek 22 3.0 LCG aluminium gearbox set

Exotek 22 3.0 LCG aluminium gearbox set

Source: Exotek [exotekracing.com]
