June 8, 2016

Team Corally Cerix Pro brushless speed controllers

Team Corally Cerix brushless speed controllers

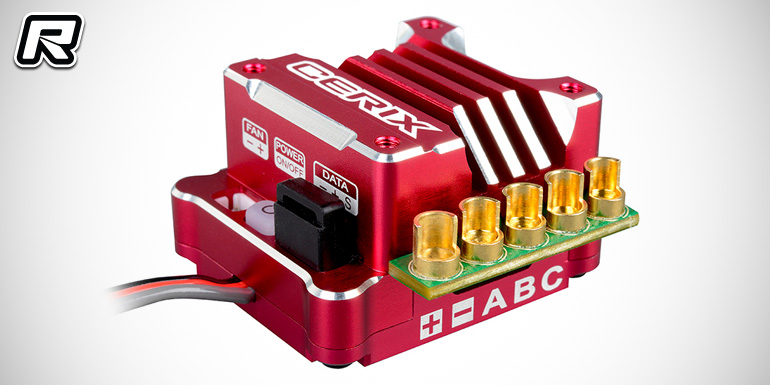

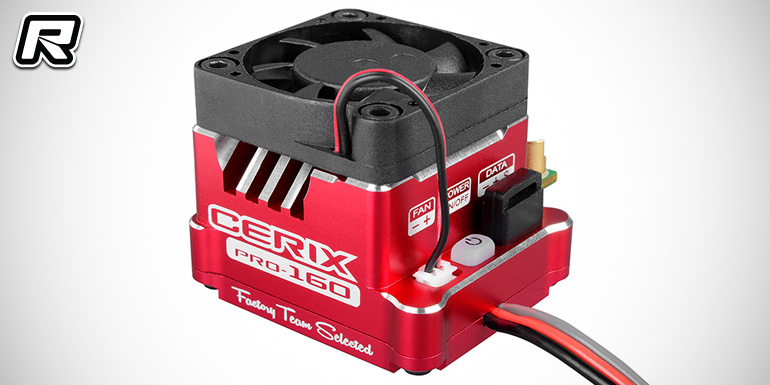

Available now from Team Corally are the new Cerix Pro brushless speed controllers for 1/10th and 1/12th scale applications. First up is the Cerix Pro 160 Racing Factory, a top-of-the-foodchaing ESC with 160A rating, adjustable 6V or 7.4V BEC system, all-alloy case and built-in capacitor unit. Designed with competition on-road and off-road racing in mind the controller offers advanced turbo and timing functions and it is usable with motors down to 3.5T.


Team Corally Cerix brushless speed controllers

Cerix Pro 160 Racing Factory specifications:
– Constant current: 160A
– Burst current: 800A
– Voltage input: 2S-3S LiPo
– BEC: 6V/7.4V, 5A
– Motor type: sensored/sensorless
– Motor limit 2S: 3.5T on-road, 5.5T off-road
– Dimensions: 37x33x22 (30mm fan)
– Weight: 44g (53g w/fan)

Team Corally Cerix brushless speed controllers

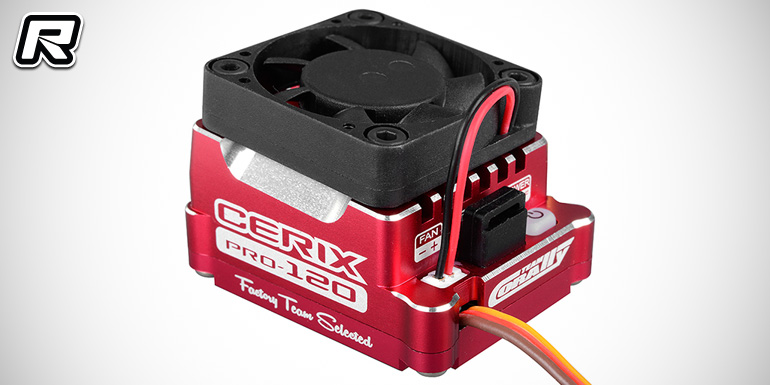

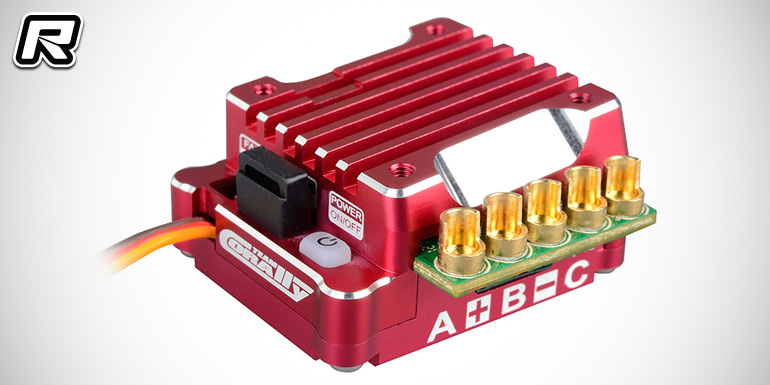

The second new speed controller is the Cerix Pro 120 Racing Factory. Pretty much the smaller sibling of the 160, it offers a 120A rating, 6V/3A BEC system and a slightly different case design with overall lower height. The ESC is highly adjustable in terms of throttle and brake settings including turbo and timing functions for boosted racing and like the 160A variant it comes with a red-anodised all-aluminium case.

Team Corally Cerix brushless speed controllers

Cerix Pro 120 Racing Factory specifications:
– Constant current: 1w0A
– Burst current: 760A
– Voltage input: 2S-3S LiPo
– BEC: 6V/3A
– Motor type: sensored/sensorless
– Motor limit 2S: 3.5T on-road, 5.5T off-road
– Dimensions: 40x33x21 (30mm fan)
– Weight: 52g (59g w/fan)

Team Corally Cerix brushless speed controllers

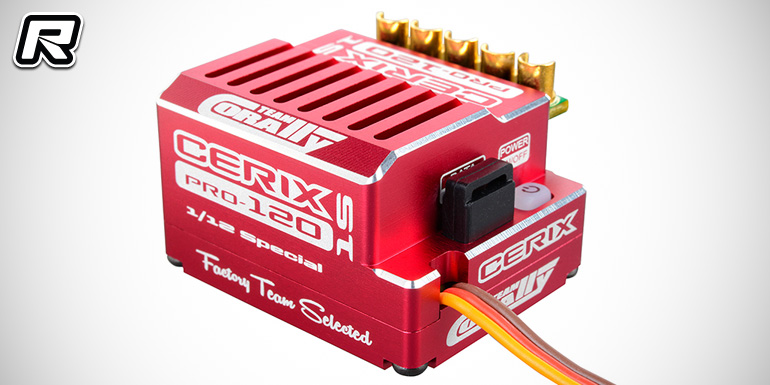

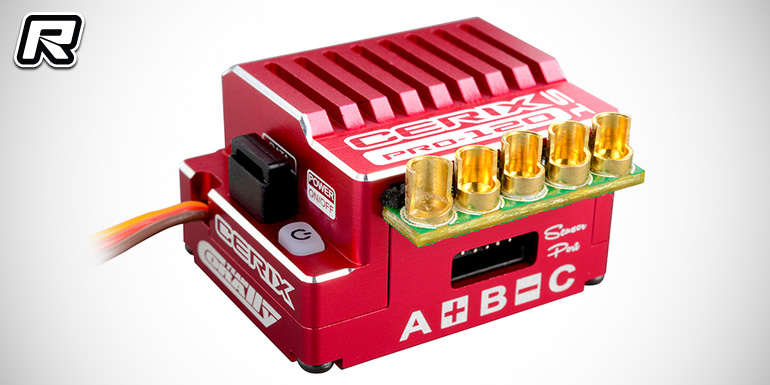

Last but not least comes the Cerix Pro 120 1S Racing Factory controller for 1S 1/12th scale applications. Building on the standard Pro 120 ESC the pan car variant offers a boosted BEC system with 6V/3A output to do away with the need to run a separate receiver battery. Like the other Cerix controllers the 1S variant is highly adjustable, it features built-in capacitors, a built-in switch and it is usable with down to 3.5T motors.

Team Corally Cerix brushless speed controllers

Cerix Pro 120 1S Racing Factory specifications:
– Constant current: 1w0A
– Burst current: 760A
– Voltage input: 1S LiPo
– BEC: 6V/3A
– Motor type: sensored/sensorless
– Motor limit 2S: 3.5T on-road, 5.5T off-road
– Dimensions: 38.5x31x23 (30mm fan)
– Weight: 50g

Source: Team Corally [corally.com]
