Active BD7 & YD-4 adjustable rear suspension mounts

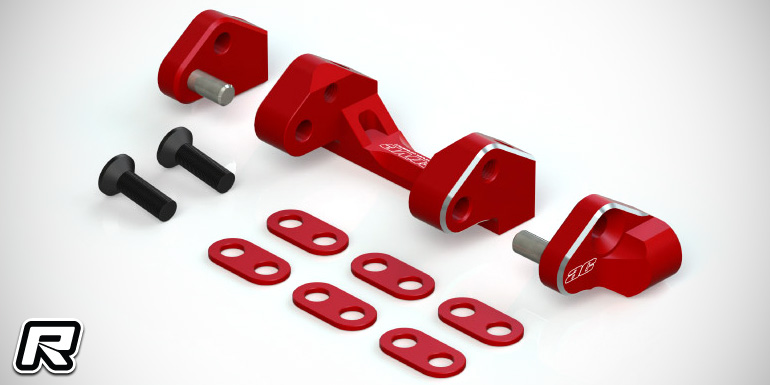

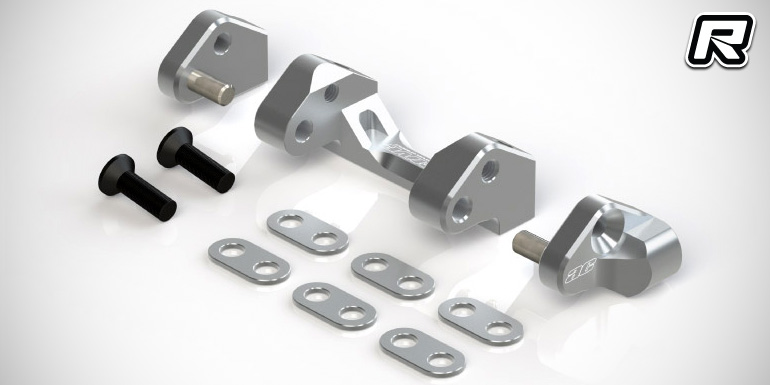

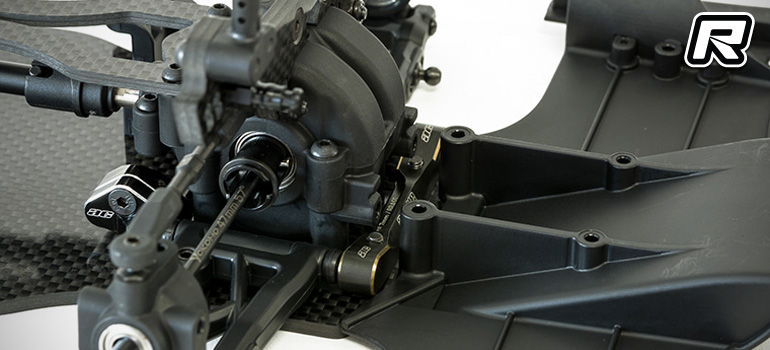

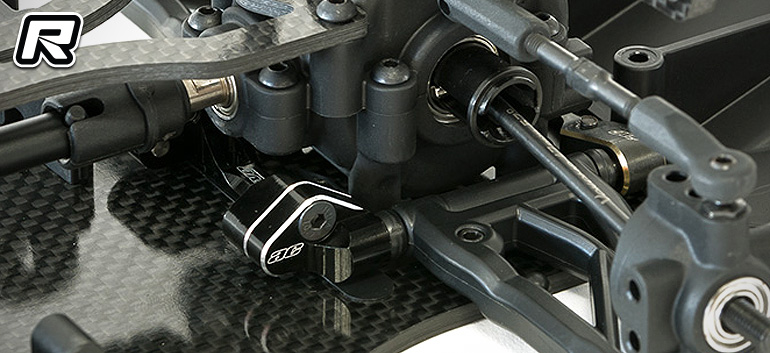

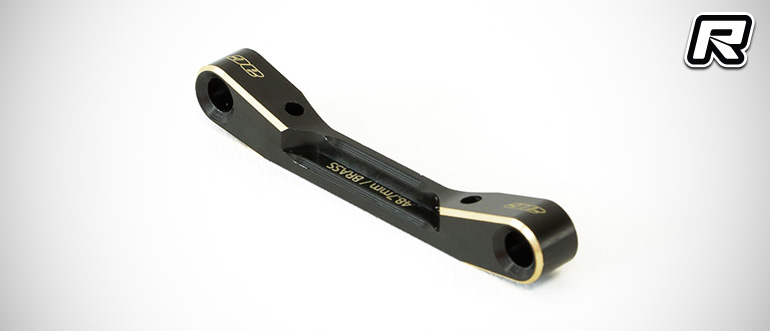

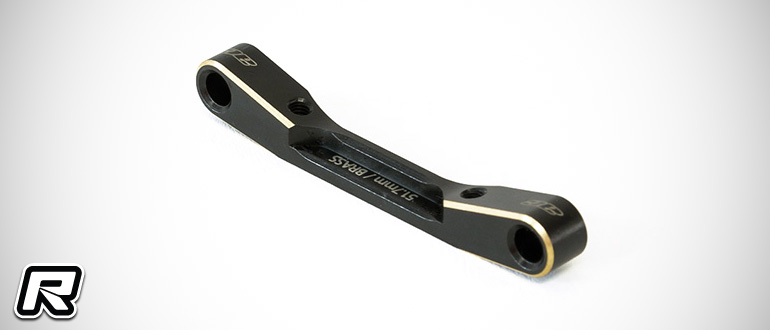

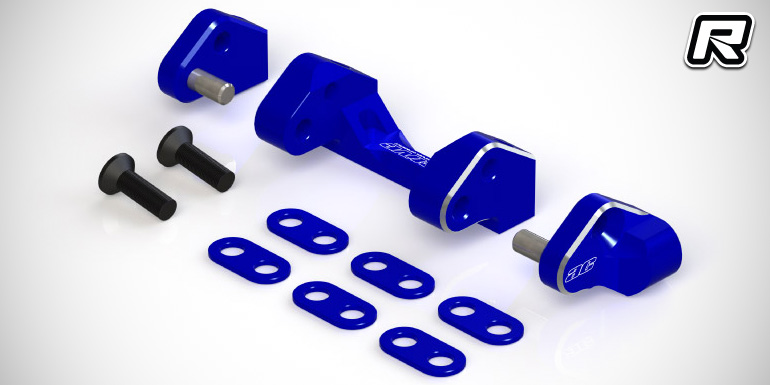

Active Hobby Products have introduced adjustable rear suspension mounts for the Yokomo BD7 and YD-4 on-road cars. The RF mount is of a multi-piece design, utilising an inner solid block to which split outer suspension pin hangers attach. Different thickness alloy shims allow to adjust the toe-in angle in a range of 0 to -3 degree with a 48.7mm RR hanger and from -2 to -5 degree with a 51.7mm RR hanger. The adjustable RF suspension mount sets are available in four different colours including black, blue, red or silver. As for the needed RR parts, Active Hobby Products have introduced two new suspension mounts machined from heavy brass material. They are available separately in a 48.7mm variant, weighing in at 16.4g and as a 51.7mm version, weighing in at 17.2g. The parts come with a black surface and sport laser-etched markings for easy identification.

Source: Active Hobby [active-hobby.com]
