July 15, 2016

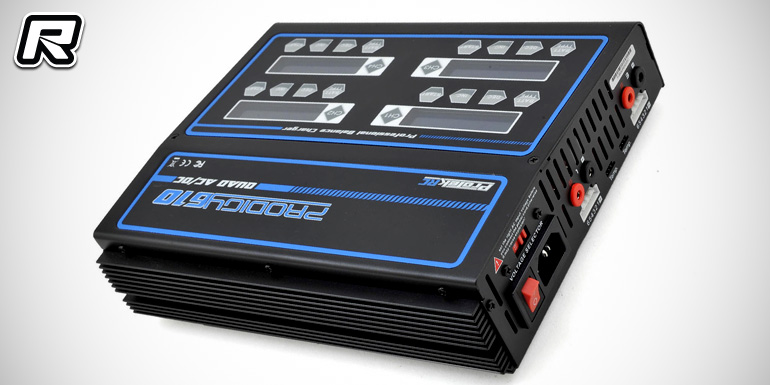

ProTek Prodigy 612 Quad AC/DC charger

ProTek Prodigy 612 Quad AC/DC charger

ProTek’s Prodigy 612 Quad AC/DC charger is a multi-output device that can handle up to four batteries at a time. Thanks to the ultra-powerful built-in power supply the device can handle 6S LiPo packs, it is capable of 10 amp charge rates, and it delivers a variety of powerful, yet useful features. The digital power setting allows users to power additional DC powered equipment, while the Pre-Charge function gives users an opportunity to save Lithium batteries that have been discharged too far. Additionally the charger features a Hi-Voltage LiHV mode that allows to safely charge Hi-Voltage LiHV capable batteries to up to 4.40V per cell. Included with the charger come AC and DC input cables, a variety of charge and connector leads as well as four XH-type balancer boards.

Features:
– Quad Cchannel digital AC/DC balance charger
– Maximum 10A charge current, up to 100W per channel
– Maximum 5A discharge current, up to 20W per channel
– 110V or 220V AC input
– Hi-Voltage LiHV charging mode allows charging end voltage up to 4.40V
– Pre-Charge function to help restore Lithium packs with cells below 3.0V
– Digital Power program delivers 3V – 24V to power other DC devices
– Supports up to 6S Lithium & 16 cell Nickel battery packs
– Lithium, Nickel & Lead Acid compatible
– Heavy duty XT 60 DC input connector
– ±0.01 balance tolerance range
– Multiple safety functions
– Heavy duty metal case
– Back-light screen
– Efficient heat sink

ProTek Prodigy 612 Quad AC/DC charger

Specifications:
– AC input voltage range: AC 110V or 220V
– DC input voltage range: DC 11.0V – 18.0V
– Charge current range: 0.1 – 10.0A
– Discharge current range: 0.1 – 5.0A
– Charge power limit: Max. 100W x2
– Discharge power limit: Max. 20W x2
– Balance current: Max. 250mA
– Balance tolerance: ±0.01V
– NiCd/NiMH cell count: 1 – 16 Cells
– Lithium battery types: LiHV, LiPo, Li-Ion, LiFe
– Lithium battery cell count: 1 – 6 Cells
– Pb battery voltage: 2 – 20V
– Digital power: 3 – 24V
– Weight: 1250g
– Dimensions: 208x170x63mm

Source: AMain [amainhobbies.com]
