August 17, 2016

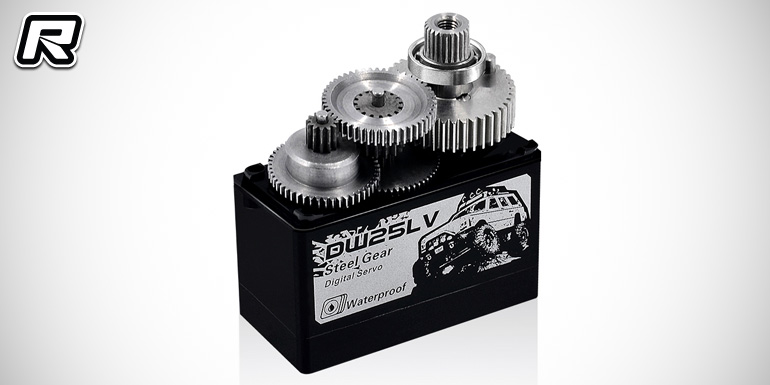

PowerHD DW25LV crawler-specific servo

PowerHD DW25LV crawler-specific servo

New from PowerHD comes the crawler-specific DW25LV servo. It features an all-aluminium case, durable titanium and steel gears, a powerful coreless motor and it pulls up to 25kg-cm of torque at a speed of 0.11s. The standard voltage servo is also fully waterproof to make for rear go-everywhere capabilities and it comes black anodised and with white laser-etched graphics.

Specifications:
Torque (4.8V): 21.0kg-cm
Torque (6.0V): 25.0kg-cm
Speed: 0.13sec (4.8V), 0.11s (6.0V)
Operating voltage: 4.8-6.0V
Weight: 80g
Bearing: dual ball bearings
Motor type: Coreless motor
Gear type: Titanium & Steel
Dimensions: 40x20x38.8mm

PowerHD DW25LV crawler-specific servo
Source: PowerHD [chd.hk]
