September 23, 2016

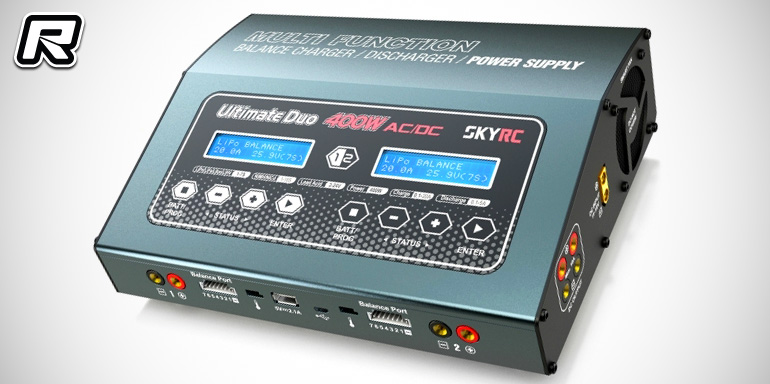

SkyRC Ultimate Duo 400W AC/DC multi charger

SkyRC Ultimate Duo 400W AC/DC multi charger

SkyRC have introduced their Ultimate Duo 400W AC/DC multi-chemistry charger with dual charge outputs. Thanks to smart power distribution capabilities the charger offers up to 400W of charge power in total with channel 1 being the 400W unit while channel 2 provides up to 200W. On top of this the device is equipped with two adjustable voltage 150W DC outputs that provide up to 10A of current, ideal to power motor testers, tyre lathes and more. The charger is usable with up to 7S LiXX batteries including the new LiHV cells and delivers up to 20A charge current. Also part of the package are two internal balancers as well as 4-button operation and one backlit display per channel. A temperature controlled fan unit keeps the temperatures at bay even in hot ambient temperatures or under heavy load.

– Dimensions: 258x194x82.5mm
– Weight: 2510g
– Input voltage: AC 100-240V/DC 11-18V
– Charge circuit power: 400W
– Discharge circuit power: 36W
– Current range: 0.1-20A
– Discharge circuit power: 0.1-5A
– Current drain for balancing port: Max 500mA/cell
– Trickle charging current: 50mA-300mA & OFF
– DC power supply output: 6-15V/Max.10A
– LiPo/LiFe/Lilon/LiHV battery cell count: 1-7S
– NiMH/NiCd battery cell count: 1-18
– Pb battery voltage: 2-24V

Source: SkyRC []
