October 17, 2016

Hobbywing XeRun XR8 SCT brushless speed controller

Hobbywing XeRun XR8 SCT brushless speed controller

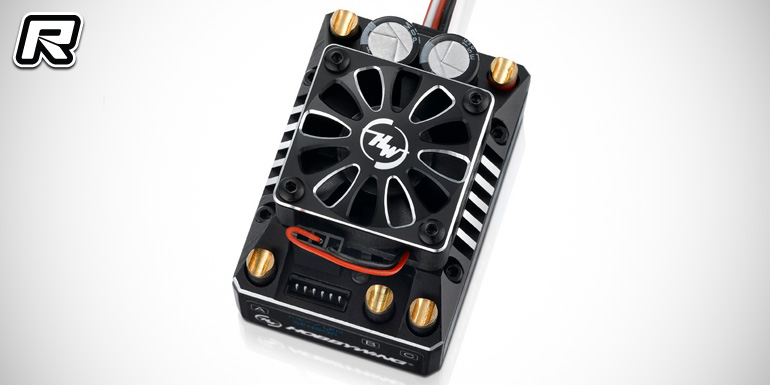

Hobbywing have introduced their new XeRun XR8 SCT brushless speed controller for 1/10th scale short course and monster trucks as well as 1/8th scale buggies and on-road cars. At 54.1×37.2×36.1mm the controller is of a more compact design and about 36.5g lighter than the XR8 Plus for easier positioning even in crowded environments. The controller features a built-in high-voltage BEC system with adjustable 6V to 7.4V output to securely power even power hungry high-torque and high-speed servos and it is usable with up to 4S LiPo battery packs. A special firmware makes for ultra-smooth throttle response and off-throttle coasting and the ESC is widely programmable using Hobbywing’s LCD programming box or WiFi module. The speedo is rounded out by a rubber-protected electronic switch.

Specifications:
– Vehicle scale: 1/10th & 1/8th scale
– Continues/peak current: 140A/880A
– Voltage input 2S-4S LiPo, 6-12 cell NiMH
– BEC output: 6V/7.4V
– Dimensions: 54.1×37.2×36.1mm
– Weight: 90.5g
– Motor limit: 2S ≤6000kv (3660-size), 3S ≤4000kv (3660-size), 4S ≤3000kv (3660-size), 4S ≤2500kv (4268-size)

Hobbywing XeRun XR8 SCT brushless speed controller

Source: Hobbywing [hobbywing.com]
