Techra Setup Wand

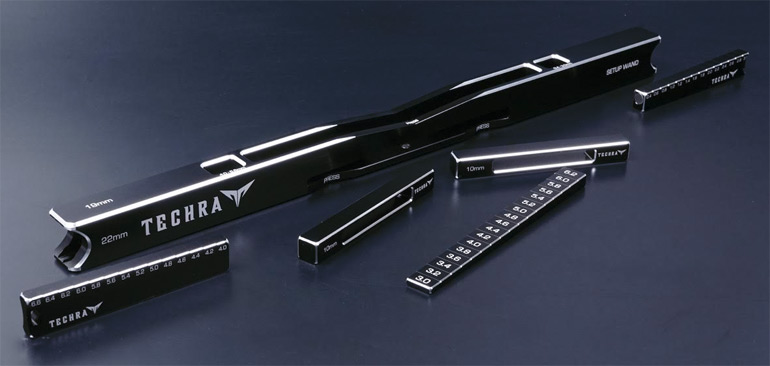

Seen during the summer but only now available, Techra announce a unique new tool for setting up touring cars, the Setup Wand. This is a must-have all-in-one tool for building and setting up touring cars. It includes a car bulkhead alignment tool, two droop gauge blocks, two droop gauges and a ride hight gauge with a magnetic system that puts all the tools securely and neatly in place. The Setup Wand is made from aluminium 7075 anodised in black with beautiful shiny silver corner edges for looks.

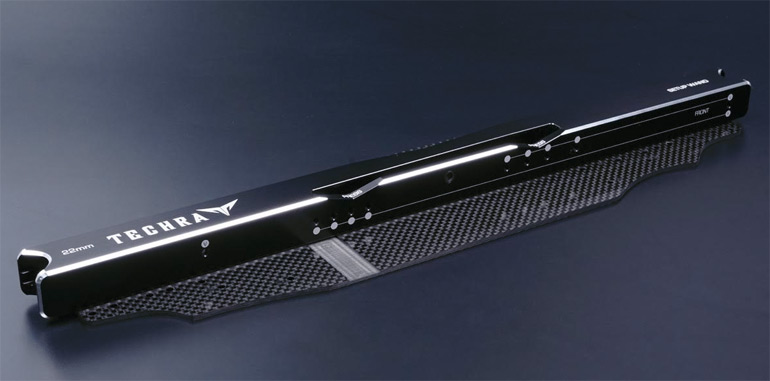

The car bulkhead alignment tool features 19mm and 20mm bulkhead width with threaded screw holes to secure chassis for popular touring car chassis like Xray, Yokomo, VBC and Tamiya. Two 10mm droop gauge blocks work together with each of the two droop gauges, the first 0.4 to 3mm with 0.2mm increments while the second measures 4mm-6.6mm with 0.2mm increments. Finally the ride height gauge measures 3mm to 6.2mm in 0.2mm increments, with all items held securely into the bulkhead alignment tool with a magnet system.

Source: Techra [facebook.com]
