January 17, 2017

Exotek aluminium clamp-on fan mount

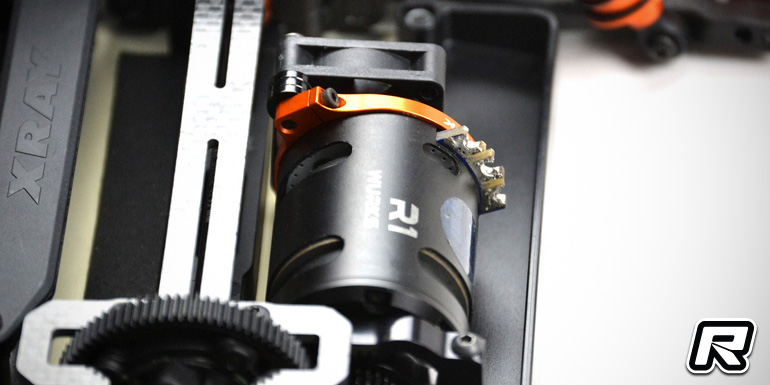

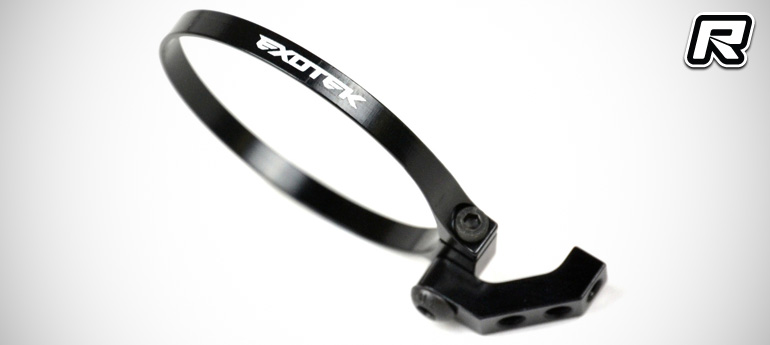

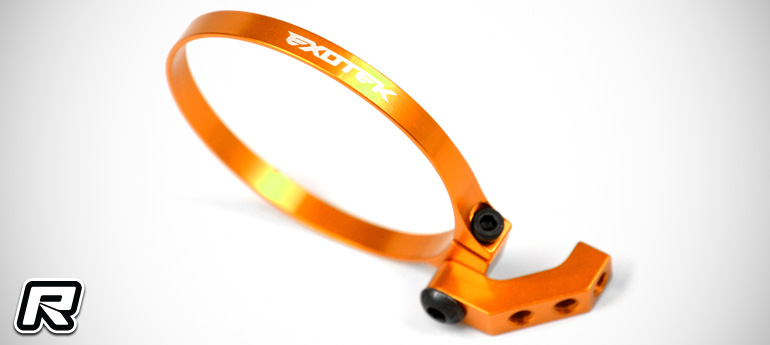

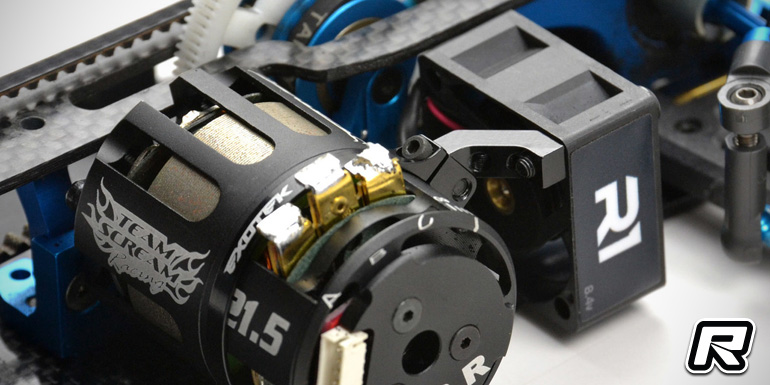

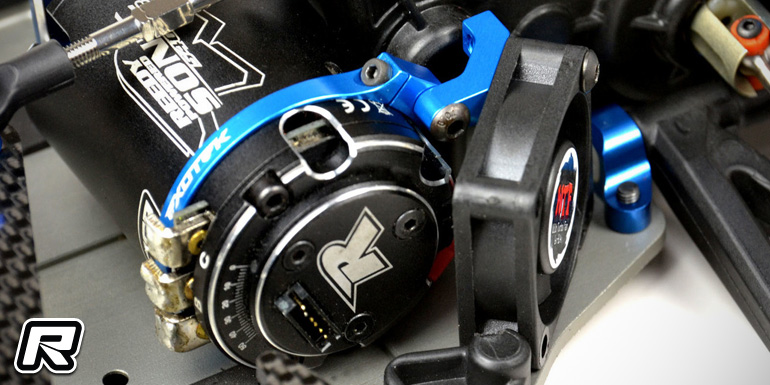

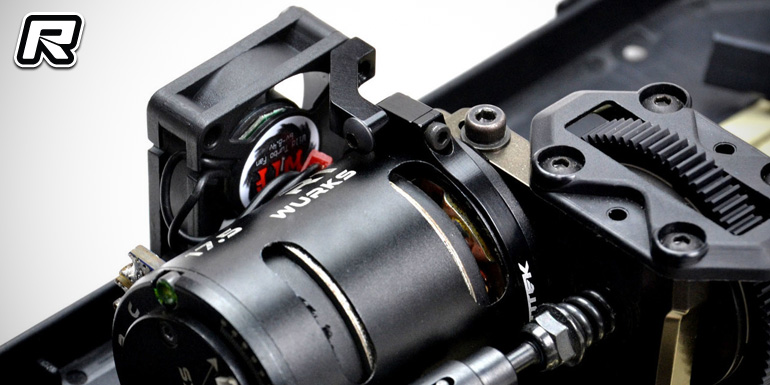

Coming from Exotek is a new aluminium clamp-on fan mount for 1/10th buggies, trucks and touring cars. Machined from aluminium and available in anodised black, blue or orange colour, the included mounting bracket has multi-mount features that allows the fan to be angled or parallel with the motor can. The angled design allows easy mounting of fans in 2WD buggies and trucks with laydown style gearboxes while for sedans the secure bracket holds the fan at a distance from the armature to avoid the magnetic fields of the motor disrupting the fans motor. The mount can also hold the fan at the end bell in cramped 4WD buggies by using camber shims for spacing. The mount is designed for use with high power 30mm fans and it fits all standard 540-sized 35.8-36mm diameter brushless motors.

Source: Exotek [exotekracing.com]
