Team Orion HMX 10 Modified brushless speed controller

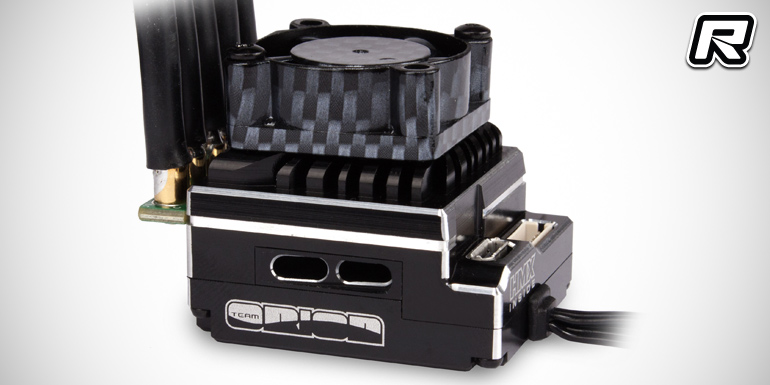

Following a first teaser image Team Orion have now officially introduced the all-new HMX 10 Modified brushless speed controller. Designed from the ground up the all-new speedo makes use of the HMX technology that was developed by World Champions Team Orion and Nexus Systems, a company that provides high-performance electric motion and propulsion solutions for aerospace and industrial customers. The HMX technology describes the combination of the ESC hardware and an Android and iOS smartphone app that makes it possible to adjust the controller without bulky boxes or devices but only an optical cable (Android) or a Bluetooth dongle (iOS).

The controller makes use of unique power fets for 250A constant and up to 2000A peak current while a 32-bit micro processor allows for extremely fast throttle and brake response. Real-time signal translation further adds to the extremely responsive behaviour of the controller and Dual Cool Mosfet transistors improve heat dissipation, which is further helped by machined air ducts and the 3-piece aluminium case. Furthermore the controller offers a switchable 6V/7.4V BEC system, advanced timing settings with two RPM-based and a Turbo-based timing setting and it features dual sensor ports and a Micro USB connector to easily connect to any Android or iOS mobile device. The HMX technology mobile app is extremely user-friendly, it offers pre-defined profiles, the possibility to download pro driver setups and it also allows to fine-tune and upload own profiles; even in offline mode which enables the driver customise the settings without the need to have the speedo switched on. The adjusted settings can then be uploaded to the controller after the next power up. No word yet on a release date but it is understood that the speedo will become available soon.

HMX 10 Modified specifications & features:
– Rated current: Const. 250A/peak up to 2000A
– Battery: 2S
– BEC: 6/7.4V, 5A adjustable
– Size: 43.9×32.7×22.4mm
– Weight: 44g (without cables)

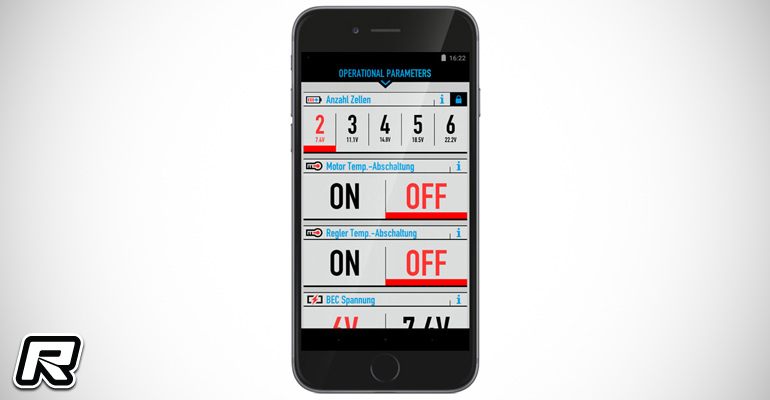

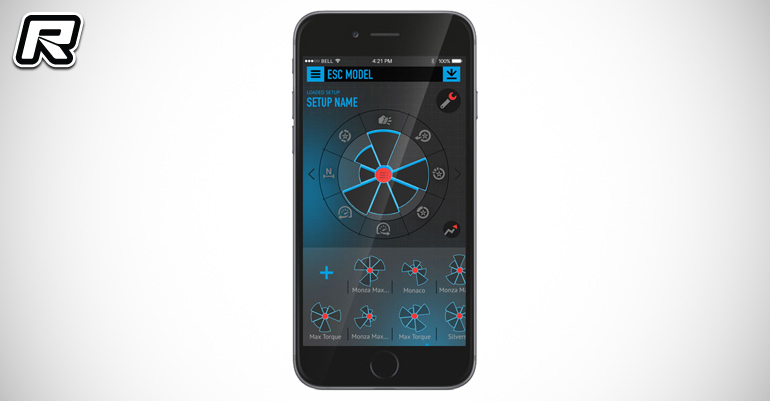

–  State-of-the-art mobile application to setup and program the speed controller
– Extremely fast response and precision thanks a 32bit micro processor
– Unrivalled power feeling and control thanks to newly developed power and brake control curve algorithms, developed with the world best RC car drivers
– Improved braking characteristics for constant braking feeling at every speed
– Real time signal translation: The signals from the receiver are translated into throttle control signals in real-time for fastest throttle control
– High-grade components, tested and selected by our engineers
– 3 piece lightweight precision machined aluminium case with machined air ducts for improved cooling
– High efficiency dual PCB design with high performance power board and ultra fast response digital control board
– Highly efficient cooling system that uses a cooling middle plate equipped with air ducts to channel fresh air directly to power PCB where the Mosfet are installed.
– Top of the line “Dual Cool” Mosfet transistors for improved heat dissipation
– Advanced Timing settings: two RPM based timing settings and one “Turbo” (full throttle) timing settings
– Switched BEC 6V and 7.4V: Easily switch between 6V and 7.4V BEC voltage for the best servo performance
– Temperature monitoring: real time ESC temperature monitoring to prevent damage from overheating
– Micro USB connector for smartphone connection (iOS support incoming)
– ABC motor wire order protection: in case of motor wire reversal, the ESC cannot be damaged
– Dual sensor port

App features:
– Calibration: easy ESC calibration using the app
– Advanced graphical display timing setup
– Race proven default ESC setups for the most popular racing categories.
– Download and install the ESC setups user by our pro drivers: Our factory drivers are sharing their settings with you! You can download them directly in the app
– Save, copy and edit setups
– Easy Firmware Update: when a new firmware is available is available, you are notified via a push-notification. The firmware update is done directly from the app
– Manage multiple HMX ESCs from the same app
– Available today for Android Smartphones and Tablets for free. iOS version to be released soon

Editable ESC parameters:
– Blinky mode switch
– Punch setting
– Maximum torque
– Neutral range
– Drag brake
– Initial brake force
– Brake strength
– Battery low voltage cut-off
– BEC voltage control, 6V or 7.4V
– Drive mode (forward/brake, forward/brake/reverse, forward/reverse)
– Maximum reverse power
– Top speed (motor RPM)
– Motor number of poles
– Number of battery cells
– ESC overheat protection switch
