March 8, 2017

JConcepts 3-D-printed wire route sleeves

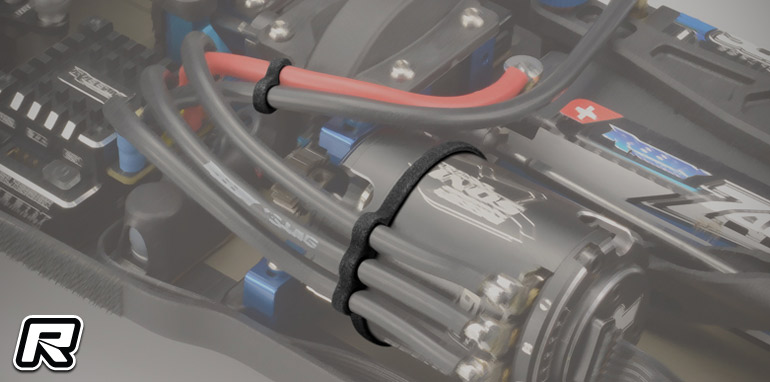

Coming from JConcepts are three new 3-D-printed wire route sleeves. The unique and small design of the wire sleeve pieces allow wiring to look clean and also aides in the overall appearance of the vehicle. First up is the 3-wire sleeve and motor ring that is made specifically for the Team Associated B64. It brings the A, B and C wires in close to the motor without touching. The built-in ring holds the wires in a clean position and minimises the height providing a little more room between body and wiring.

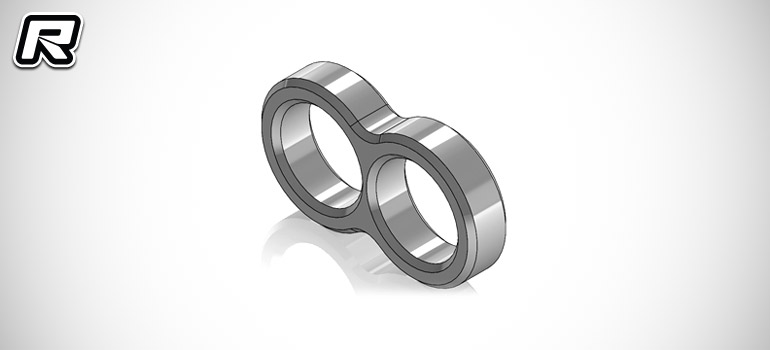

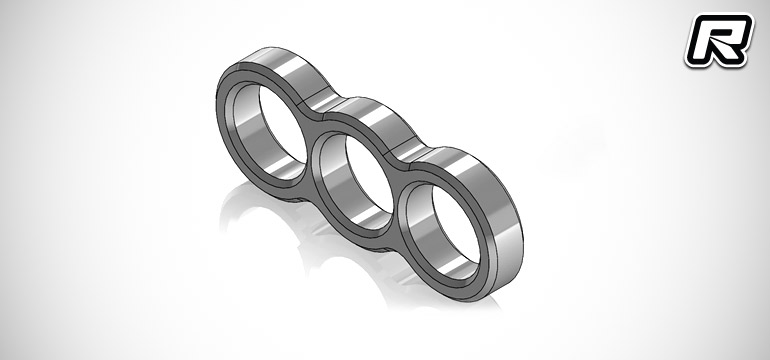

The second new wire route sleeve is a 3-wire item such as the above but without motor ring, allowing to use it in 4WD and 2WD buggies as well as trucks and on-road vehicles. Last but not least is a 2-wire variant for the positive and negative wires of speed controllers. All items work best with 13 gauge wire or smaller but can accommodate slightly different wire size by slightly reaming the plastic to desired size or fit. The JConcepts versions are built to fit snuggly and directly for the Reedy 510R competition ESC with 13 gauge wires. The route sleeves are available directly through JConcepts Shapeways store.

Source: JConcepts []
