May 4, 2017

Highest DLP650 “X” orange low-profile digital servo

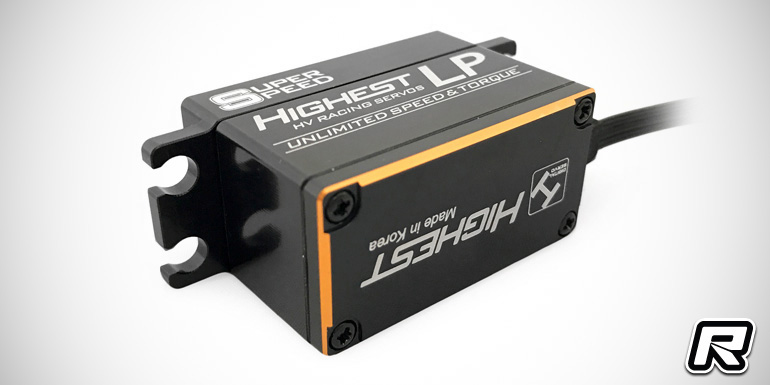

Coming from Highest is the new DLP650 “X” orange low-profile digital servo. The high-voltage compatible servo features a black all-aluminium case with orange edge details, it utilises an all-metal geartrain, 25T servo spline and it comes including an aluminium servo arm and a 170mm all-black receiver wire.


Specifications:
– Operating voltage: 6.0~7.4V
– Operating temperature range: -10 to +60 Degree C
– Operating speed (6.0V): 0.07sec
– Operating speed (7.4V): 0.06sec
– Dynamic torque (6.0V): 7.1kg-cm / 98.7 oz-in
– Dynamic torque (7.4V): 8.3kg-cm / 115.4 oz-in
– Motor type: High efficiency coreless motor
– Size: 39.5×20.0x30.3mm
– Weight: 54.5 g

Source: Mibosport [mibosport.com]
