May 17, 2017

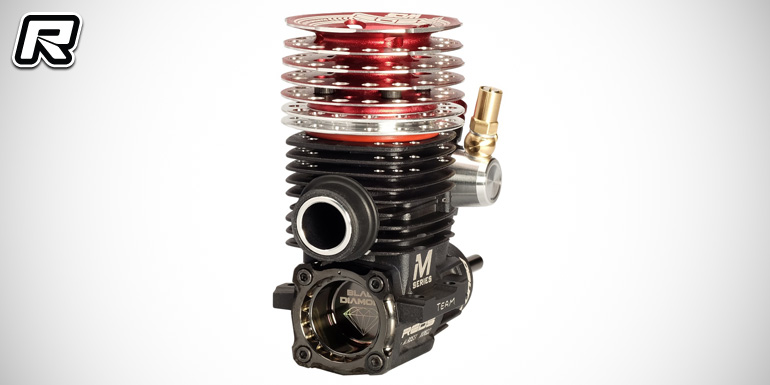

Reds Racing M7 WCS Diamond Edition on-road engine

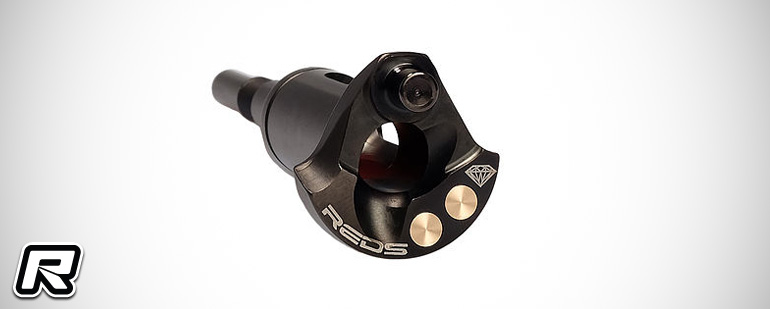

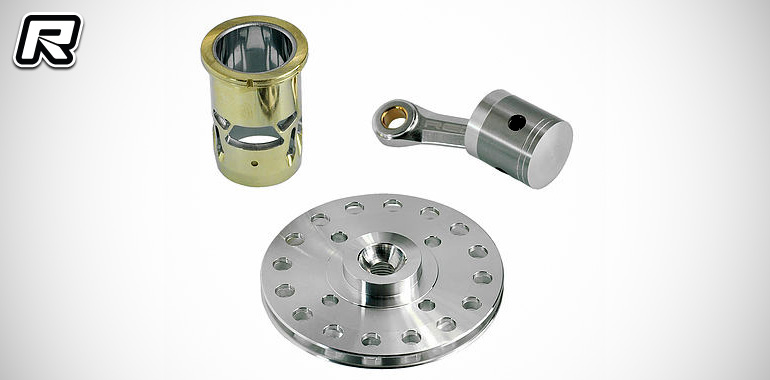

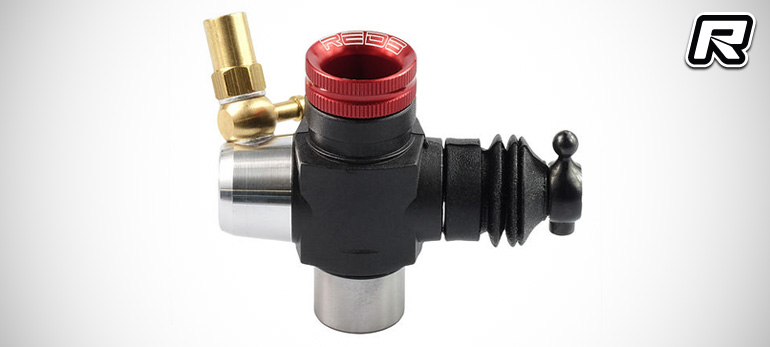

Italian company Reds Racing have introduced their new M7 WCS Diamond Edition 1/8th nitro on-road engine. The 7-port extra long stroke engine is based on the M7 WCS 3.0 power plant and it features a new DLC-coated crankshaft, a new carburettor, a new cooling head and Reds Racing’s anti-dirt sealing system. The DLC-coated crankshaft and backplate will make for improved engine durability while the on-road specific carburettor provides greater idling stability, more precise tuning and improved power delivery. Furthermore the engine comes with a brand new cooling head which features an new design for improved airflow, resulting in increased cooling and a lower centre of gravity. The new cooling head is also lighter than the standard ones. Finally the cooling head’s anti-dirt sealing system keeps the engine clean in a critical area between the cooling head and crankcase. The redesigned crankcase also provides easier maintenance and a cleaner engine for longer life.

Specifications:
– Category: 1/8 on road
– Displacement: 3.5cc
– Bore: 16.04mm
– Stroke: 17.32mm
– Inlet ports: 7
– Outlet ports: 3
– Front ball bearing features rubber seal
– Rear ball bearing features hybrid ceramic
– Carburetor diameter: 9.0mm (8.0, 8.5 optional)
– Carburetor setting: 2 needle
– Weight: 310g
– Recommended pipe: EFRA 2113

Source: Reds Racing [reds-racing.com]
