June 27, 2017

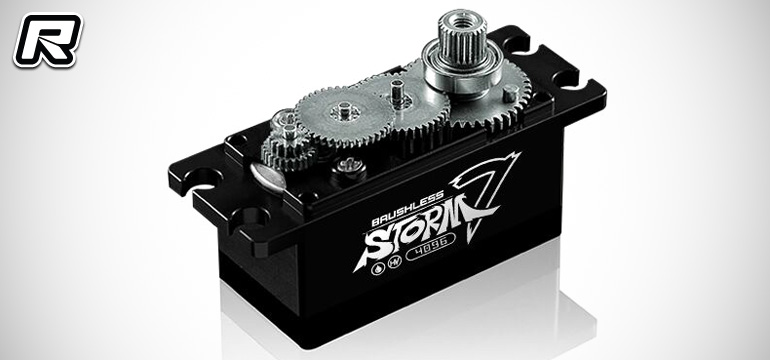

Power HD black colour Storm-7 low-profile servo

Coming from Power HD is the new black colour Storm-7 low-profile servo. With a speed of down to 0.055s and a torque of up to 13kg-cm it offers the same specification as the old purple-cased servo with the new all-black colour making it better suited for vehicles that already offer a splash of colour. With its brushless motor and high-voltage compatibility it is ideal for the use in electric and nitro touring cars as well as electric buggies.

Specification:
– Torque (6.0V): 10.0kg-cm
– Torque (7.4V): 13.0kg-cm
– Speed: 0.065s (6.0V), 0.055s (7.4V)
– Operating voltage: 6.0-8.4V
– Weight: 52.0g
– Bearing Type: Dual ball bearings
– Motor type: Brushless motor
– Gear type: Titanium & Aluminium
– Working frequency: 1520μs/333hz
– Dimensions: 41.0×20.0x26.4mm

Source: Power HD [chd.hk]
