SRT BH8015 low-profile HV brushless servo

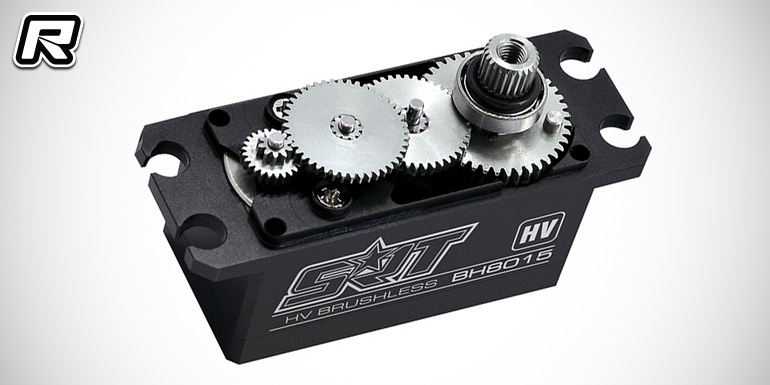

SRT have introduced their new BH8015 low-profile servo for 1/10th scale applications. The high-voltage compatible servo is able to pull up to 15kg-cm of torque at a speed of down to 0.05s and it features a CNC-machined aluminium case, a unique mechanical design as well as dual ball bearings and mixed titanium and aluminium gears. A black receiver wire and white graphics round out the visual appearance.

– Type: digital
– Bearing: dual
– Motor type: brushless
– Gear type: metal
– Gear material: titanium & aluminium
– Control system: pulse width control
– Working frequency: 1520μs/330hz
– Operating voltage: DC 6.0-8.4v
– Operating speed (6.0v): 0.065s/60 degrees
– Operating speed (7.4v): 0.055s/60 degrees
– operating speed (8.4v): 0.050s/60 degrees
– Stall torque (6.0v): 10.0kg-cm
– Stall torque (7.4v): 13.0kg-cm
– Stall torque (8.4v): 15.0kg-cm
– Potentiometer drive: direct drive
– Dimensions: 41.0×20.0x26.4mm
– Weight: 52.0g

Source: SRT []
