December 8, 2017

Exotek D216 aluminium main chassis plate

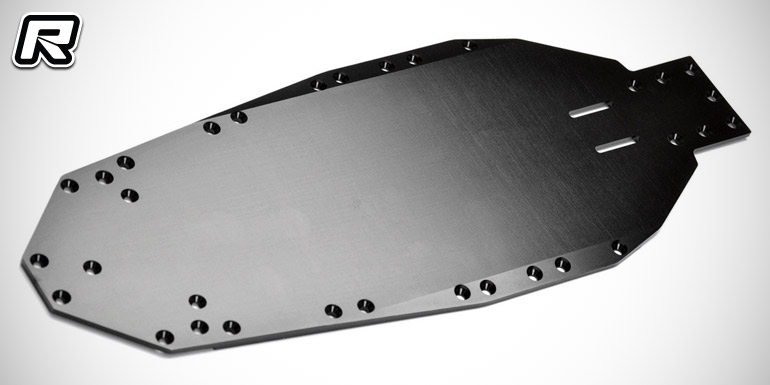

Coming from Exotek and made for the HB Racing D216 2WD buggy is a machined 7075 aluminium main chassis plate. It is designed to provide a more consistent handling and lowered CG for today’s highly groomed indoor tracks. The plate is machined with a chamfered edge on the bottom to improve ground clearance and the top is machined to a have 2.5mm thick main section to reduce weight and 4mm thick side rails area to maintain stiffness. Also machined pockets are added throughout to reduce weight, bringing it to 145g. The chassis works with the stock side rails or the Exotek D216 carbon side rails.

Source: Exotek []
