R1 Wurks Super LCG 80A brushless speed controller

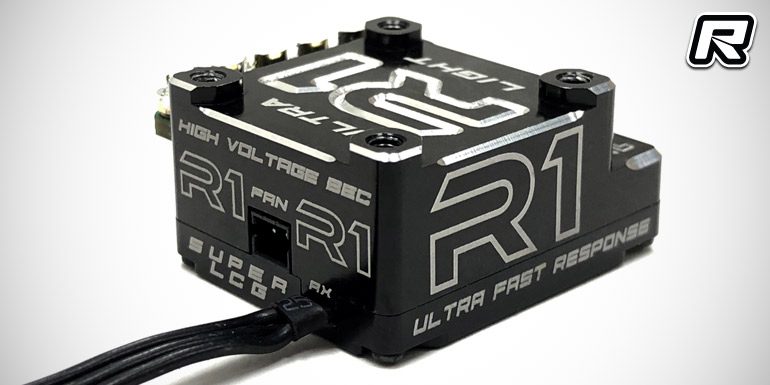

New from R1 Wurks is the Super LCG 80A spec racing brushless speed controller. Developed using an advanced CPU technology and proprietary software combo, the ESC is meant to deliver smooth yet most responsive throttle feel. The controller offers the same advanced throttle and brake adjustability as R1 Wurks’ Digital 2 ESC to suit a wide range of driving styles and offers blinky mode (zero timing) for spec racing. All adjustable settings are easily programmed using a digital program box, designed with an intuitive, easy to use interface. The unit also features the A.C.L.C. Advanced Component Level Cooling system, this design allows individual Mosfets to transfer heat directly to the upper heatsink. The Super LCG saves up to 50 grams (including wire) of weight compared to R1’s full sized ESC, and has a nearly 30 percent smaller footprint.

– Low centre of gravity
– Ultra low weight
– Advanced high speed micro controller
– Enhanced throttle smoothness, fell & brake strength
– Blinky mode for zero timing stock racing
– Digital program box with plug in and go
– Premium low ESR capacitors included
– All aluminium enclosure featuring Advanced Component Level Cooling
– Adjustable throttle & brake frequency to further customise the throttle feel & power delivery
– Most advanced programmable turbo & boost functions, featuring dyno tuned increments
– Motor/ESC temperature protection
– User adjustable low voltage protection
– MS Windows software used for future firmware updates
– Designed to pass ROAR, BRCA & EFRA zero timing regulation

– Scale: Radio controlled 1/10th scale vehicle
– Continuous current: 80A
– Current Burst: 380A
– Power input: 5-7 cells Nimh/NiCd or 2s Lipo, 2s Life
– BEC output: 6V/7.4V @ 3A
– Wire: 14awg
– Cooling fan: 25x25x7mm Premuim High Speed Fan
– Motor: 540 size 2 pole Brushless sensored
– Motor limit: 13.5T
– Dimension: 31.5mm (L) x 25.6mm (W) 24.6mm(H)
– Weight: 25g without fan, capacitor and stock wiring
