December 11, 2017

Reds Racing WRX Corsa Lunga 3.5cc nitro off-road engine

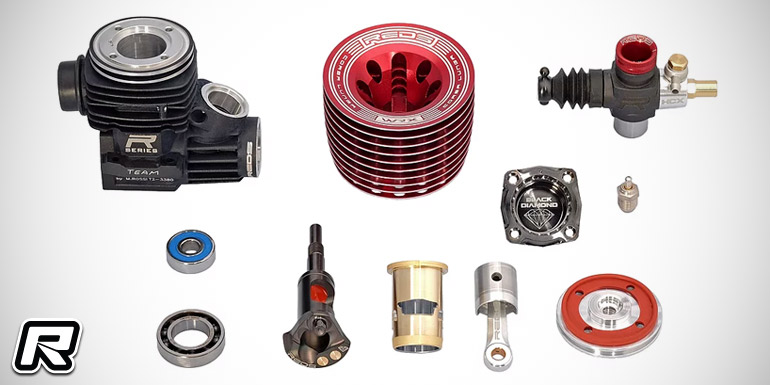

Italian company Reds Racing have introduced their new WRX Corsa Lunga 3.5cc nitro off-road engine. The long stroke extreme torque power plant was developed for medium to high grip tracks and it offers an extra long stroke design, five scavenger ports and a single exhaust port cylinder sleeve to deliver a 20,000 RPM range of usable torque while offering exceptional mileage. The engine is equipped with a DLC-coated crankshaft and backplate for up to 3-times the lifespan of conventional steel crankshafts and a new cooling system allows the engine to perform at its best even in very hot ambient temperatures. Other features include the proven HCX carburettor, and the engine comes tuned and assembled using hand-inspected parts and following a compression check.

Specifications:
– Class: 1/8 Buggy and Truggy
– Displacement: 3.5cc
– Bore: 16.04mm
– Stroke: 17.32mm
– Inlet ports: 5
– Outlet ports: 1
– Crankshaft: balanced, DLC-coated
– Front ball bearing: rubber sealed, Japan made
– Rear ball bearing: ceramic, Swiss made
– Carburettor diameter: 7.0 (6.0 and 6.5 optional)
– Carburettor: HCX Upgrade
– Weight: 345g
– Cylinder system: ABC

Source: Reds Racing [reds-racing.com]
