December 13, 2017

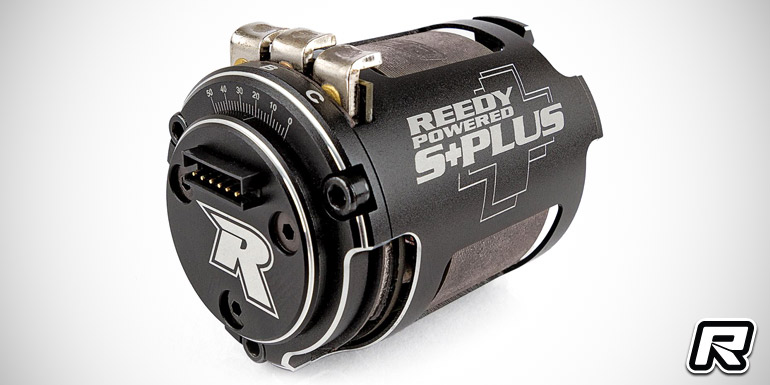

Reedy S-Plus competition spec class motors

Coming from Reedy are the new S-Plus competition spec class electric brushless motors. The heart of the S-Plus is a thin leg stator that allows shorter wire lengths, resulting in great reduction in resistance. The thin-leg stator also reduces the motor’s weight, as handling and chassis turning flexibility improves. Machined parts such as the can, timing cap, back plate, and sensor assembly have been placed on a diet. An entire section of the front plate has been removed to reduce weight with an added benefit of allowing the user to re-position it to lower CG depending on which type of car it is being installed in. A savings of nearly 30g has been achieved. Additionally, the motor’s length has been reduced by more than 2mm, which aids left/right balance and moves mass towards the centre of the chassis. An all-new high-strength, balanced rotor is more powerful that its predecessor. Because the rotor is interchangeable with those in 540-M3 spec motors, a wide range of tuning options are already available. Precision stainless steel ball bearings have been fitted to accommodate high RPM loads with exceptional efficiency and reliability. Three versions, 21.5, 17.5, and 13.5, are available with more versions to follow.

– CNC-machined lightweight can
– Low-resistance stator
– High-strength, balanced rotor
– Silver-plated solder tabs
– Precision ball bearings
– Optimised air cooling
– Adjustable timing
– Competition proven
– R.O.A.R. approved (pending)

Source: Team Associated []
