January 18, 2018

Dash AI Pro competition speed controller

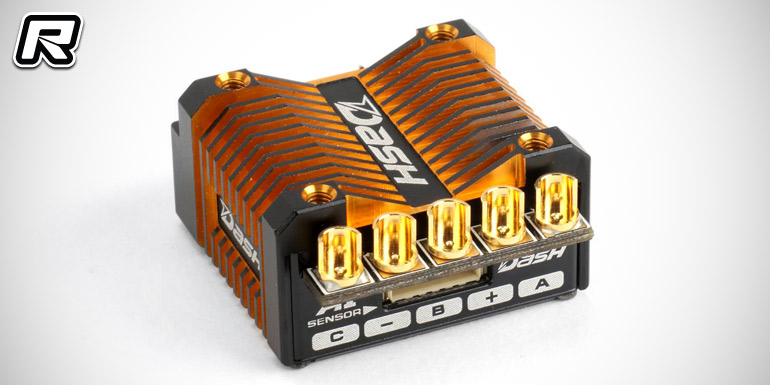

Arrowmax have introduced the Dash AI Pro competition brushless speed controller for 1/10th scale applications. The speedo makes use of a machined aluminium heatsink design case in two-tone colouring and it features a 32-bit micro controller, a high-voltage 30mm turbo fan, and an adjustable 6V to 7.4V BEC system allows to utilise standard or high voltage servos. Interchangeable ABC motor terminal assignment allow to custom configure the wire layout for cleaner wiring without crossing cables and the ESC is widely programmable using an optional programming device.

– Size: 41x36x20mm
– Weight: 46g
– Voltage input: 4.8-9.9VDC (2S LiPo/2-3S LiFe)
– Peak current: 760A
– Continuous current: 190A
– Motor limit: 4.5T
– BEC: 6V/7.4V

Source: Arrowmax [arrowmax-rc.com]
